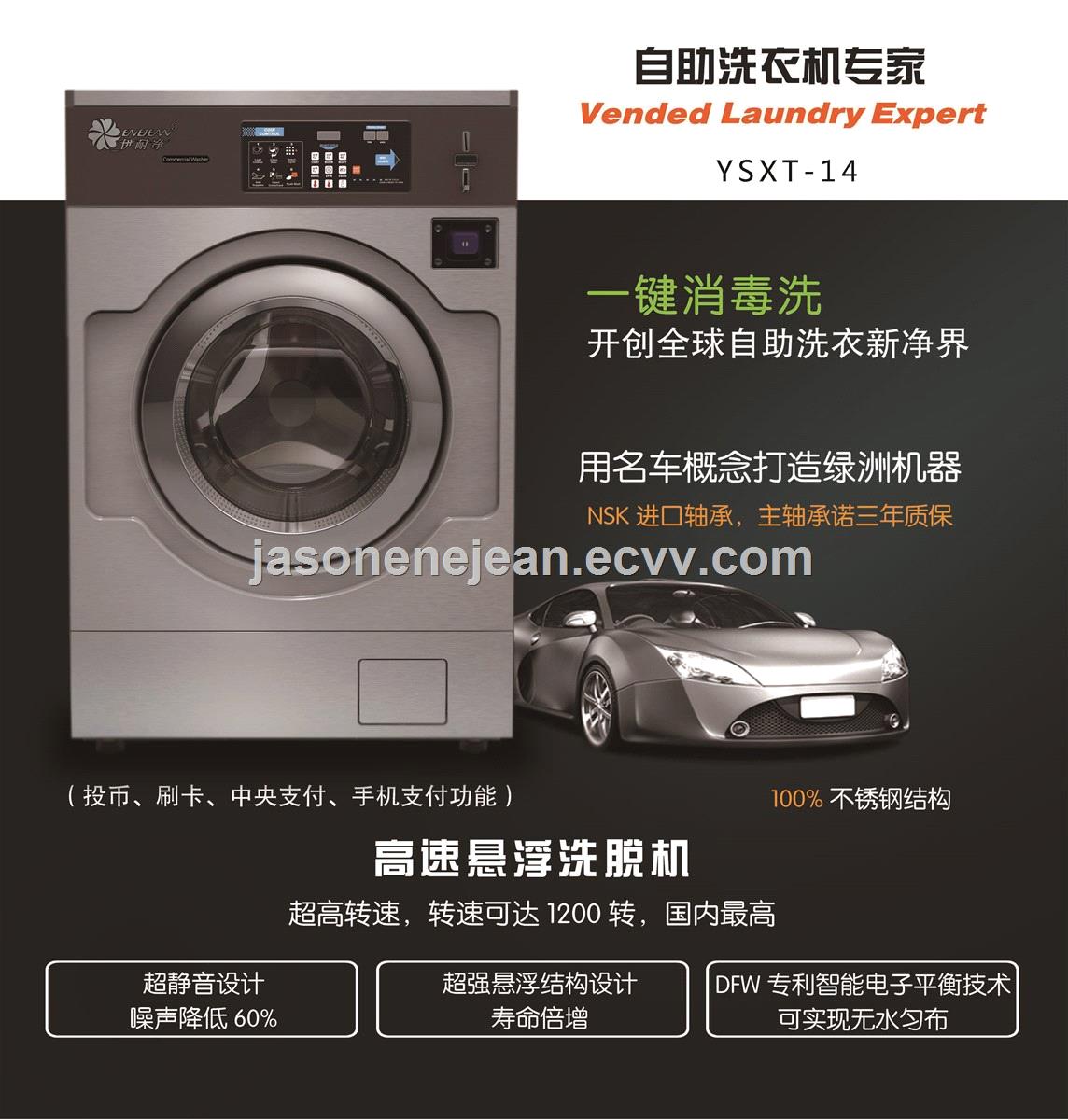

New coin oprated washing machine

Feature:

1 Adopt Multi-launguage man-machine dialogue interface, can independently complete adding water, heating, adding detergent, washing, uniforming clothes, dehydration, etc.

2 Moulding production level leads among similar machines, effectively reduce the internal and external drum gap, eliminate backward water storage box, saving water, energy and material.

3 Extra high speed, up to 1000 rpm or more, very low moisture content after dehydration, saving drying and ironing energy, improve working efficiency.

4 Equipped with cold & hot water inlet system.

5 Equipped with Reserved interface to detergent dispenser.

6 Full stainless steel structure, both inner and outer drum are made of high quality German Krupp Stainless steel, inner drum adopts advanced markless Rotary press technology, high concentricity and strength (unique in China).

7 Bearing and sealing adopt international famous brand, reliable and durable.

8 Adopt DFW intelligent electronic balance technology, high precision titanium magnesium alloy belt pulley, Germany original damping system, uniforming clothes without water (unique in China), more stable and reliable high speed running.

9 Large diameter door, convenient to laoding & unloading clothes, molding production will reduce abrasion to ckothes.

10 Revolutionary "washboard type rotating cage structure" + "super energy-saving driving technology", significantly enhance the washing capacity up to more than 30%, energy saving up to more than 60%.

11 Self-service and normal options.



Specification

Model	Unit	YSXT-11	YSXT-14
Capacity	KG	11	14
Drum Volume	L	84	110
Drum deep	mm	376	415
Drum Diameter	mm	532	580
Washing speed	rpm	48	48
Extracting Speed	rpm	1000	1000
Extracting factor	G	300	325
Cool water pipe	inch	?	?
Hot water pipe	inch	?	?
Drainage pipe	inch	￠51	￠51
Water pressure	mpa	0.15-0.4	0.15-0.4
Door Dia.	mm	￠540	￠540
Door Center to Ground	mm	577	594
Motor Power	KW	0.37	0.37
VFD power	KW	0.37	0.37
Width	cm	710	800
Deep	cm	770	846
Height	cm	1062	1205
Weight	kg	360	400
