| Operating Temperature: | -40- +105 |
|---|---|
| Rated Voltage: | 250-280V |
| Capacitance: | 3uf-65uf |
| Package Type: | Surface Mount |
| Application: | AC / Motor |
| Type: | Polypropylene Film Capacitor |
| Model Number: | CBB80 |
| Brand Name: | BSD |
| Place of Origin: | China (Mainland) |
| Warranty time: | 3 years |
| Service: | OEM and ODM |
| Certificate: | CE ,RoHS |
| Delivery time: | 2 weeks |
Quick Details
Specifications

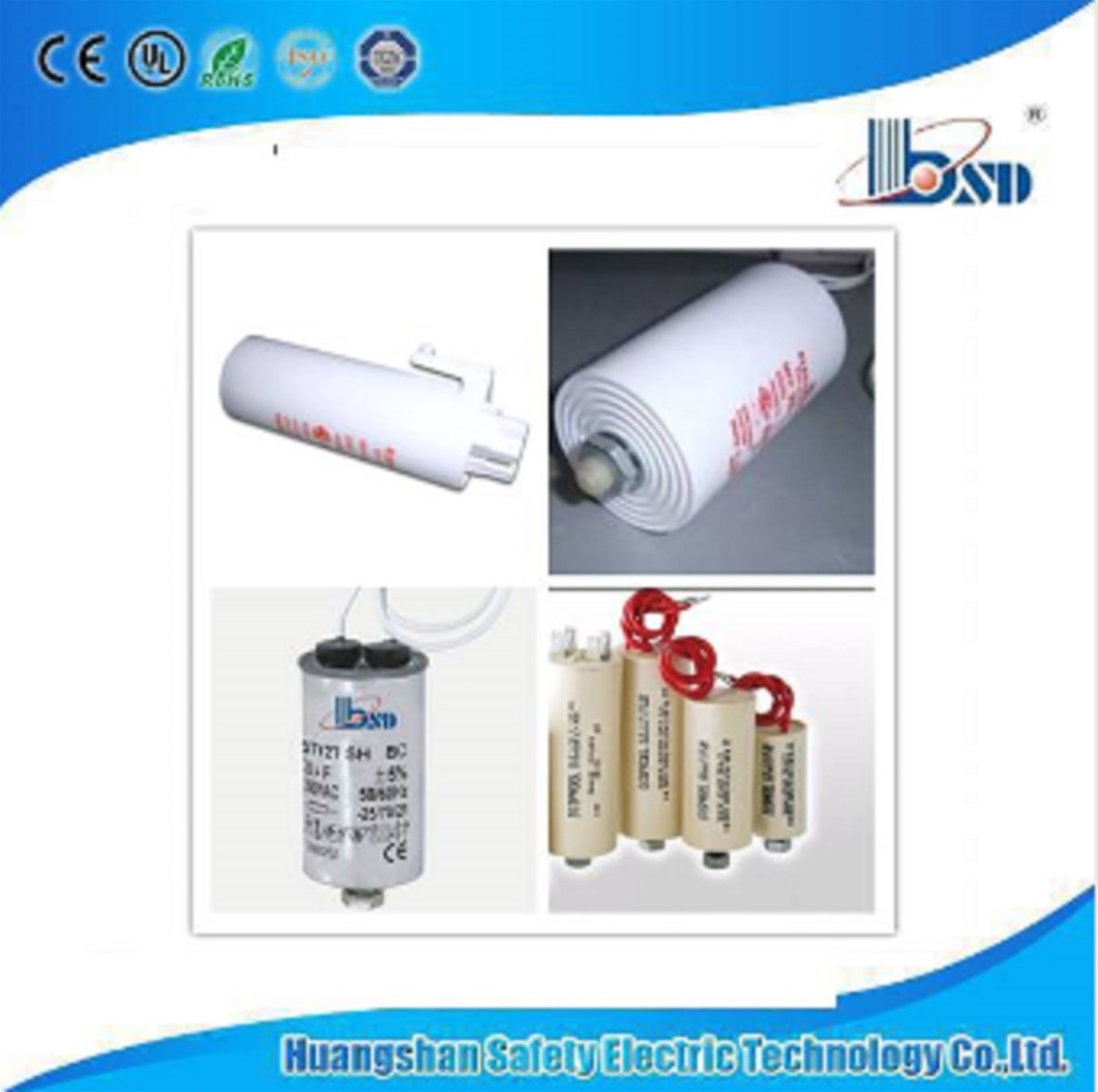

CBB80 series lighting capacitor /for sodium vpor lamp
Features:
1, Small, light weight
2, Very low loss, long lifespan, good self-healing
3, High insulation resistance, safety and stable.
4, Built-in the explosion-proof device and discharge resistance
5, Used for grille lamps or energy-saving lamps
Structure:
1). the capacitor body is convoluted with metallized film.
2). the container is adoptted flame & temperature resistant engineering plastic or aluminum, etc metal material. It is enveloped with epoxy resin.
3). the install part is screw at bottom of container or double hanging hook.
4). Connection terminals: Plastic-sealed wire, fast connected terminal and discharge resistance.
5). We can design the particular specification and connection terminal according to clients' Requirement.
Application:
Used for AC electronic power system at 50HZ(60HZ). Especially for fluorescent lamps, efficient metal-halogenide lamps for debase current in circuit and save electric energy.
| Rated voltage | 170-250-280-450-480 |
| Capacitance | 1-45uf |
| Frequency | 50/60HZ |
| Material | Plastic case /mental case |
| Standard | IEC61048&IEC61049 |
