| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 Months |
| Certification: | ISO9001:2008 |
| Weight: | 5-12 Tons |
| Dimension(L*W*H): | 1000mm-5000mm |
| Power(W): | Adjustable |
| Voltage: | 3 Phases 380V |
| Model Number: | JDHB-335 |
| Brand Name: | JINDA |
| Place of Origin: | China (Mainland) |
| Usage: | Brazing Furnace |
| Type: | Resistance Furnace |
| Condition: | New |
| Vacuum pump: | Rotary vane pump, roots pump, diffusion pump |
| Heating and heat preservation: | Graphite, graphite heat preservation |
| Structure: | Horizontal, charge batch from front |
| Max temperature: | 1300C |
| Color: | Customized |
Quick Details
Specifications
1. Application:
the JDHB series vacuum high-temperature brazing furnaces are mainly applicable to vacuum brazing of stainless steel, titanium alloys, high-temperature alloys, hard alloys and nonferrous metals, etc.
2. Features:
2.1 Outside circulation cooling mode is adopted, and heating is separated from cooling.
2.2 All-metal panel is adopted for thermal insulation to guarantee the high degree of vacuum required for workpieces during brazing.
2.3 Multi-zone temperature control is employed for heating to guarantee perfect temperature uniformity in temperature zone.
3. Reference for type selection
Horizontal, vertical and continuous furnaces can be provided. Customers can customize furnace models according to amount of folding, and meanwhile can customize various non-standard vacuum high-temperature brazing furnaces.
4.Technical parameter
| Model: | Dimensions of Service area |
Charge Batch |
Max. temperature (℃) |
Temperature Uniformity |
Final Vacuum (PA) |
Pressure Rise Rate (PA/h) |
| (mm) | (kg) | (±℃) | ||||
| JDHB-335 | 300×300×500 | 100 | 1300 | 5 | 6×10-4 | 0.5 |
| JDHB-446 | 400×400×600 | 150 | 1300 | 5 | 6×10-4 | 0.5 |
| JDHB-557 | 500×500×700 | 280 | 1300 | 5 | 6×10-4 | 0.5 |
| JDHB-669 | 600×600×900 | 450 | 1300 | 5 | 6×10-4 | 0.5 |
| JDHB-8812 | 800×800×1200 | 800 | 1300 | 5 | 6×10-4 | 0.5 |
| JDHB-9918 | 900×900×1800 | 1000 | 1300 | 5 | 6×10-4 | 0.5 |
| JDHB--2M | 1000×1000×2000 | 1200 | 1300 | 5 | 6×10-4 | 0.5 |

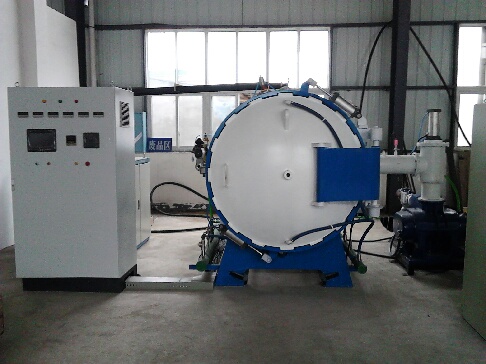

5. Product Show
6. Applied fields:
1.Automobile industry ( EGR brazing-Exhaust Gas Recycle, oil radiator brazing, plate fin oil cooler brazing, heat exchanger brazing)
2.Aviation industry (Aero engine parts, honeycomb seal ring brazing, cellular brazing, engine fuel manifold brazing, stainless steel heat exchanger brazing,
Compressor stator brazing)
3.Air separation plant (impeller brazing, compressor intercooler brazing, regenerator brazing)
4.Engineering machinery ( bit brazing, diamond tools brazing)
7. FAQ
1.Q:Are you a factory?
A:Yes. We are factory which integrates design,manufacture and sales for 10 years.
2.Q:What kind of vacuum furnaces do you have?
A: We have various of vacuum equipment including vacuum heat treatment furnace, vacuum brazing furnace, vacuum hot-pressing furnace, vacuum induction furnace, vacuum metallurgical furnace and vacuum sintering furnace, etc.
3.Q:Can you serve customer oversea like installation and debugging?
A: Yes, we can dispatch our engineer to your city for installation and debugging for those equipment which from our factory, we also provide training and after-sales maintenance service.
4.Q:how about training?
A:Buyers send operator to our factory to get trained or we dispatch engineers to offer training in the users working site.
5.Q:how long is your furnace warranty period?
A: You have 1 year warranty period after passing the site acceptance.
6.Q:how to get quick quotation from us?
A:You offer us the treating material, the size of the work piece, max. Temperature, heating zone dimension, vacuum degree and other special requirements. Then we can quote you ASAP.
7.Q: how about the brand of your vacuum pump?
A: We have Leybold (Germany) & Shangzhen ( China shanghai) and etc., brands for option, customers can select the brand according to their budget.
8.Q: Do you have technical support for the products vacuum treatment?
A: Yes,Our engineers will analyze your products according to the size,material and technical requirements you offered then give you professional technical support. At present, we have powerful technical reserve about vacuum brazing,vacuum heat treatment, vacuum sintering and vacuum melting so that we could provide the customer with mature technical support.
9.Q:Do you provide sample-making for the products? Is it free?
A: Our factory has professional experimental facilities and could provide the support for customer's sample making.Our engineers will analyze the products and then make the samples according to the customers requirements.The sample is not free and the price will be quoted base on customer's requirements.
