TECHNICAL PARAMETERS:

Model	KSR620	KSR920	KSR1320
Max. Coating width	620mm	920mm	1320mm
Max. Coating thickness	2-80mm	2-80mm	2-80mm
Min. Coating length	300mm	300mm	300mm
Feeding speed	5-18m/min	5-18m/min	5-18m/min
Coating power	0.75kw	0.75kw	0.75kw
Total power	3.75kw	3.75kw	3.75kw
Overall dimensions (mm)	1800x1750x1300	1800x2100x1300	1800x2450x1300
Gross weight	800kg	1000kg	1200kg


MACHINE FEATURES:

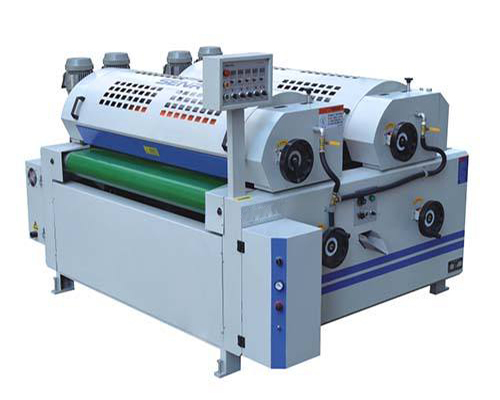

1. Full precision double roller coating machine for furniture panels is widely used for the coating and painting of furniture, flooring,
MDF boards, door, artwork board, etc. the coating surface is smooth without wrinkling and has good saturation. the coating surface
Is very thin but can get similar effect with curtain painting.

2. the speed of transmission belt, plastic roller and electrical light roller can be adjusted by separated motor and frequency inverter,
so the paint gloos and film thickness can be controlled more sophisticatedly.

3. the coating roller adopts quick-assemble structure, easy to install, with high precision. the height is shown on the counter, it can
Be adjusted very accurately and conveniently according to the boards with different thickness.

4. the machine equipped with imported scraper, and angle of scraper can be adjusted by worm reducer. the distance between
Smooth roller and PU roller can be adjusted by worm shaft.

5. Equipped with five frequency inverters or PLC, which can be used by each head separately, operation is more accurately.
