Poles Number: | 1p2p3p,4p |
---|---|
Type: | Mini |
Model Number: | 5SX |
Brand Name: | BSD |
Place of Origin: | China (Mainland) |
Service: | OEM and ODM service |
Warranty Time: | 2 years |
Frequency: | 50HZ/60HZ |
Standard: | IEC60898 |
Quick Details
Specifications
Application

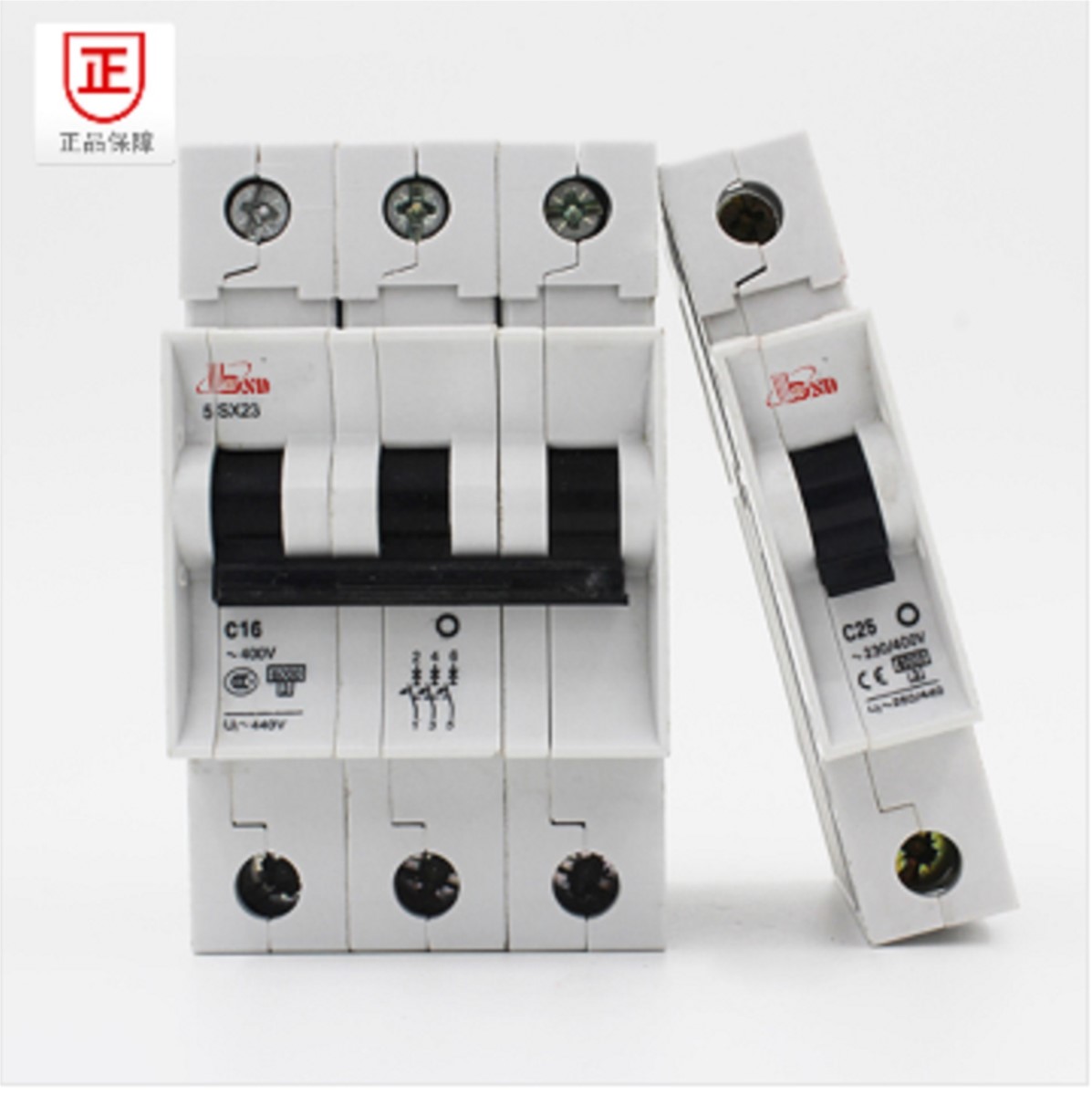

5SX series mini circuit breaker is mainly suitable for overload and short circuit protection. It is especially used for illumination and distribution industry and commerce. It is of pleasing out-look, light weight, reliable performance, high breaking capacity, etc.
It is mainly used for overload and short circuit protection within the circuit of AC 50/60HZ, rated voltage of single pole up to 240V, two, three or four poles up to 415V. It can also be used for an unfrequented switchover of the circuit and illumination under normal conditions.
SPECIFICATION
Frequency |
50/60Hz |
Rated voltage |
240/415V AC |
Rated brEaking capacity |
3000A,6000A |
Rated current | 2,4,6,10,16,20,25,32,40,50,63 |
No. of pole |
1p,2p,3p,4p |
Standard |
IEC60898 |
