Application



C60 mini circuit breaker belongs to the advanced level of the nineties in the international instead of the old generation of C45N. and they also have many merits of high protective grade (up to IP20), high breaking capacity, good reliability of sensitive action, convenient multi-pole assorting, long using life etc. They are mainly used for overload and short circuit protection within the circuit of AC 50Hz, 230V in single pole, 400V in double, three & four poles of lighting distribution system in industry & commerce. Meanwhile, they are also used in turning on & off the electric apparatus and lighting circuit under the normal condition.

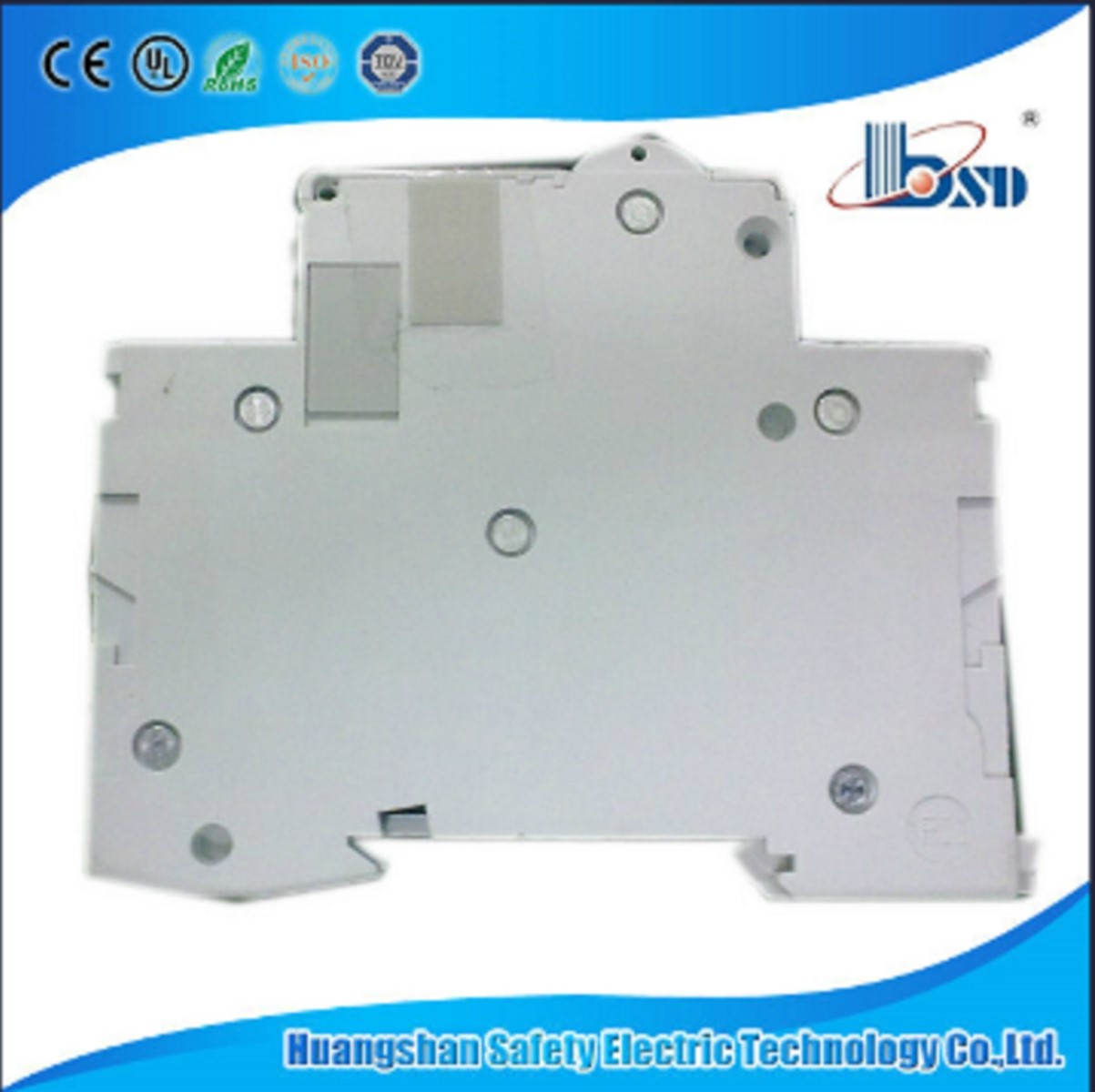

C65 circuit breaker MCB

1)C65 series circuit breaker are used in lighting distribution system or motor distribution system for
Protection overload and short-circuit in the system.
the product is neoteric in structure, light in weight, reliable and excellent in performance.
It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics.

2)the product, with long life, is mainly used in AC 50Hz/60Hz single pole 230V or two, three,
Four poles 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case.
the products comply with IEC 60898.

Type	C65 C60
Number of poles	1P, 2P, 3P, 4P
Rated Current(A)	1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A
Breaking Capacity(A)	6000/ 4500
Rated Voltage(V)	230/400V
Rated Frequency(Hz)	50/60Hz
Endurance	≥4000
Circumstance Temp.(°C)	-5°C ~ +40°C
Electrical Life	≥6000
Mechanical Life	≥20000
