about us:
1.We are the professional manufacturer of package printing machinery with more than 30 years production experience.
the same industry of China, we are the first through the ISO9001 certification.
3.Our Products sell well in more than 20 provinces and cities nation-wide, also in Western Europe,South America and other countries.

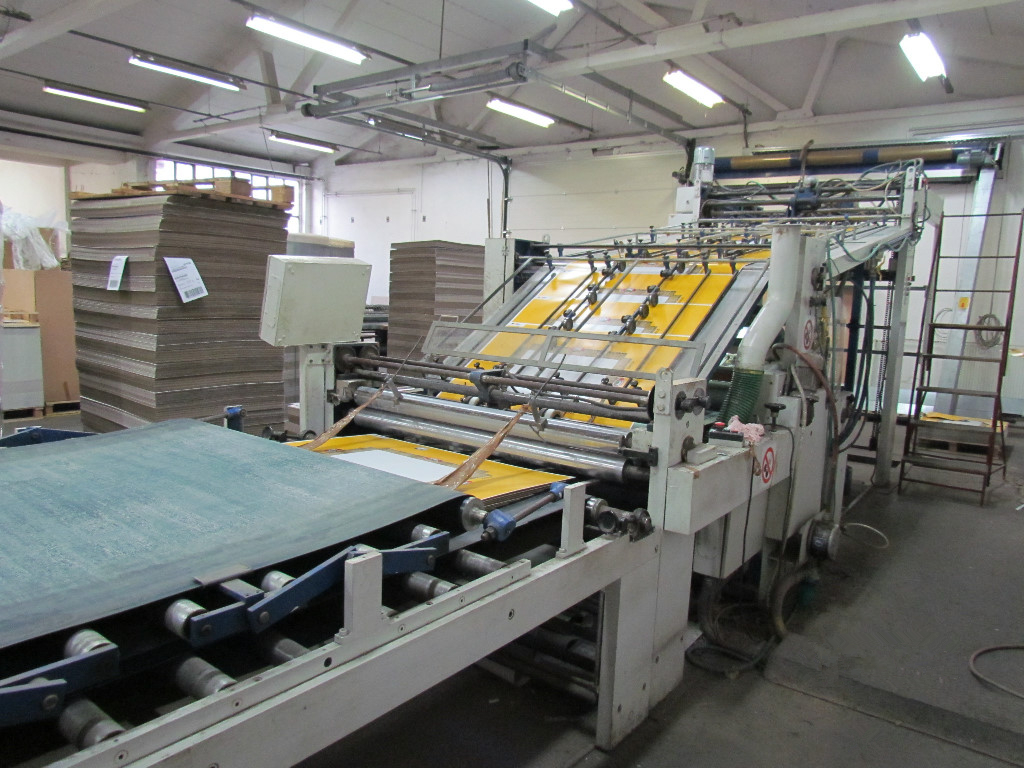

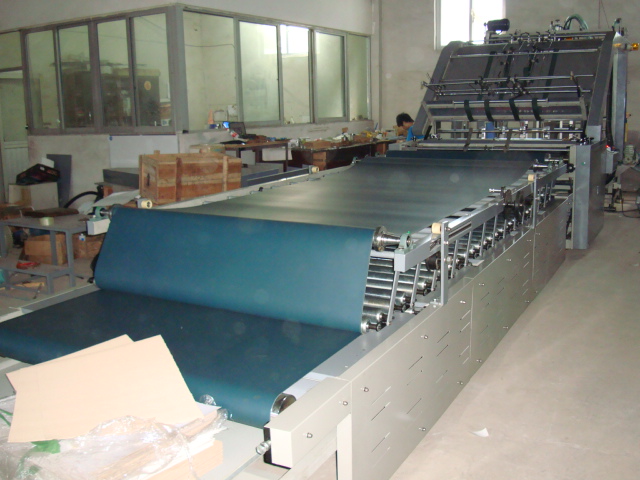

Main configuration:
 1.Unique forward positioning system, positioning accuracy, the BACKING PAPER will never lead; Tissue the advanced quantity adjustable.
 2.for corrugated with A,B,C,D,E,F,N flute,Three/five/seven could work,mounted out of paper smoothness and accuracy.
 3.Equipped with high precision high speed Fidek paper, reinforced Feed device, smooth and smooth paper.
 4.BACKING PAPER with suction automatic feed, according to the speed of the host, continuous automatic tracking.
 5.Import electrical components, ensure the stability of the circuit system, PLC tracking technology, fault automatic alarm.
 6.Automatic glue replenishment system, can automatically supplement the loss of dispense volume, and cooperate with glue recycling.
 7.the scientific design of roll line speed, ensure the uniform of the upper dispense volume, avoid the high speed running.
 8.Floating can move the press to ensure that corrugated corrugated paper will not be compressed, but also ensure the smooth and straight cardboard.
 9.Independent water tank controls the water circulation mode, ensure the back of the BACKING PAPER, at the same time cleaning the top roller, pick up, back to.
 10.Use single side adjustment pressure roller pressure, and equipped with pressure gauge display, replace the BACKING PAPER specification regulator.

Main Specifications

Model	BZL-B1300	BZL-B1450	BZL-B1600
Max. Size	13001100mm	14501100mm	16001100mm
Min. Size	350350mm	350350mm	350350mm
Top Paper Thickness	150~600	150~600	150~600
Laminating Precision	1.5mm	1.5mm	1.5mm
Total Power	12KW / 380V	12KW / 380V	12KW / 380V
Working Speed	100 m/min	100 m/min	100 m/min
Total Weight	6.8T	7.2T	8.0T
Overall Size	12.52.152.6m	12.52.32.6m	12.52.452.6m
Bottom Paper Thickness	A,B,C,E,F,AB,BB,BC,EE (Corrugated paper),(Industrial paperboard)
