| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | ISO9001,CCC |
| Model Number: | JDF5120GKJ |
| Brand Name: | Jiangte |
| Place of Origin: | China (Mainland) |
| Gross Vehicle Weight: | 16000 |
| Size: | 6400*2470*2900 |
| Engine Capacity: | 190 |
| Fuel Type: | Diesel |
| Volume: | 10001 - 15000L |
| Emission Standard: | Euro 3 |
| Transmission Type: | Manual |
| Type: | hooking lift |
| Drive Wheel: | 4x2 |
| Condition: | New |
| garbage box capacity: | 12cbm |
| wheelbase: | 3950,4500mm |
Quick Details
Specifications

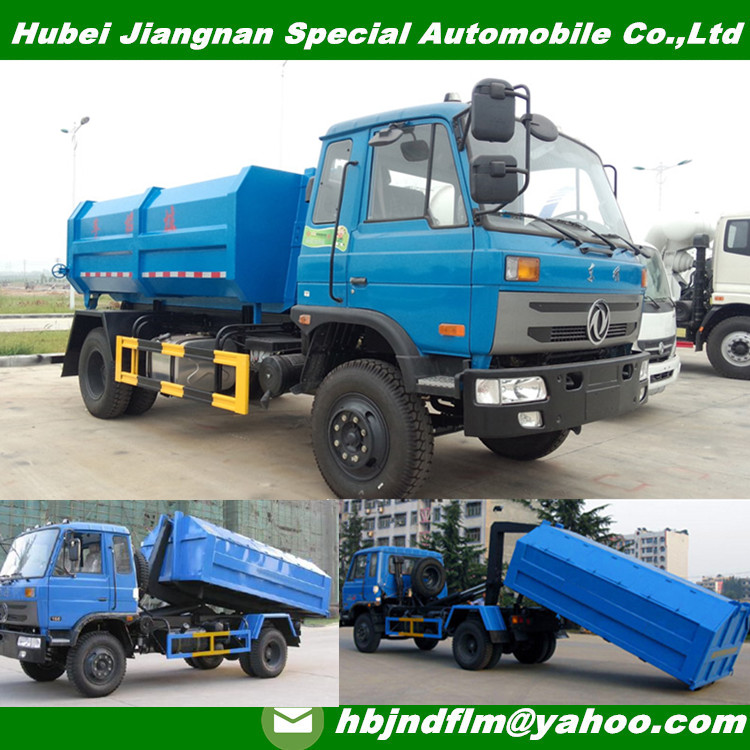

Brand new Foton Dongfeng 10-12cubic hooking lift garbage truck price
Hooking lift Truck Main Parameters(10-12CBM)
Vehicle Model |
JDF5120GKJ |
Chassis Model |
EQ1128GLJ | ||
Weight (kg) |
Rated Weight |
9505 |
Overall Size(mm) |
6400*2470*2900 | |
Curb Weight |
6305 |
Van Size(mm) |
/ | ||
GVW |
16000 |
Wheelbase (mm) |
3950,4500 | ||
Engine |
Model |
B190 33 |
Fuel Type |
Diesel | |
Power/Displacement(KW/ML) |
140/5900 |
Manufactory |
Dongfeng Cummins Engine Co.,LTD | ||
Performance Parameters |
Max Speed(km/h) |
90 |
Wheel Trace(mm) |
Front |
1900 |
Max Gradeability(%) |
30 |
Rear |
1800 | ||
Fuel Consumption(100km/L) |
19 |
Wheel Suspension (mm) |
Front |
1250 | |
Empty in Slope(%) |
20 |
Rear |
2170 | ||
Min Turning Radius(m) |
14 |
Angle(°) |
Approach Angle |
30 | |
Min Ground clearance(mm) |
176 |
Departure Angle |
18 | ||
|
Tire |
9.00-20 |
Garbage Capacity |
10-12CBM | |
Others |
Cabin with air-conditioner, color as Customer required. Mainly yellow, white; Free part 5x sets Brakes pads;3x Oil Filter;3 x air filter;3xdiesel filter | ||||
30% TT for down payment,70% TT balance before delivering toChinaport | |||||
about 15 Working days after order(delivery time according the latest sail schedule ) | |||||
We also provide u:
1. Aerial Working Truck
2. Fire Truck
3. Crane Truck
4. Garbage Transport Truck
5. Vacuum Suction Truck
6. Road Wrecker Truck
7. Road Sweeper Truck
8. Flat-bed Truck
9. Fuel/Oil Transport Truck
10. Water Transport/Spraying Truck
11. LPG Tanker
12. Chemical Liquid Tanker
13. Milk Road Tanker
14. Refrigerated Truck
15. Van Truck
16. Semi Traier
17. Concrete Mixer Truck
18. Other Special Purpose Trucks
19. Parts for vehicles
A. LHD(Left Hand Drive) & RHD(Right Hand Drive)
B. Drive Model: 4X2, 4X4, 6X2, 6X4, 6X6,8X4,8X8
C. Chassis Brand: DONGFENG, SINOTRUCK(STEYR,HOWO), FAW, FOTON, JMC, JAC, IVECO & North Benz.
D. Fuel Type of Engine: Diesel or Gasoline.
