| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | CCC |
| Model Number: | EQ1121GLJ |
| Brand Name: | Dongfeng |
| Place of Origin: | China (Mainland) |
| Gross Vehicle Weight: | 8605 |
| Size: | 8400x2480x3050 |
| Engine Capacity: | 190 |
| Fuel Type: | Diesel |
| Volume: | 10001 - 15000L |
| Emission Standard: | Euro 3 |
| Transmission Type: | Manual |
| Type: | Compactor |
| Drive Wheel: | 4x2 |
| Condition: | New |
| color: | white |
| drive: | RHD /LHD |
Quick Details
Specifications
Name |

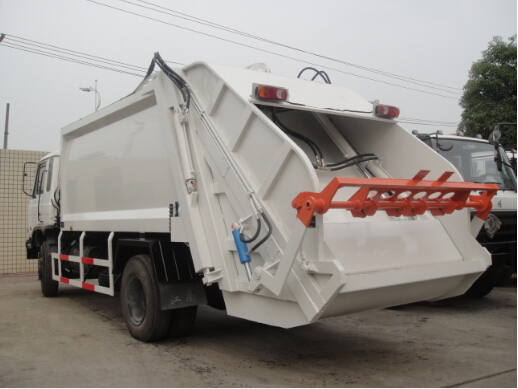

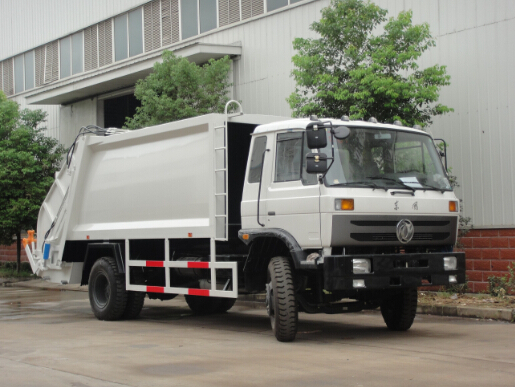

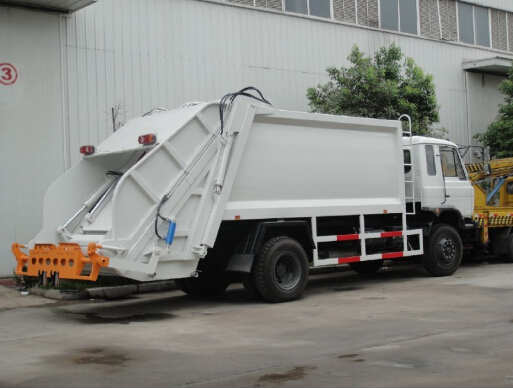

DFAC 10-12CBM Compression Garbage Truck | ||
Max mass Kg |
15600 |
Garbage volume(CBM) |
10(wheelbase3950mm) 12(wheelbase4500mm) |
Rated loading Kg |
6800 |
Outline size(mm) |
8400x2480x3050 |
Curb weight Kg |
8605 |
Van size(mm) |
xx |
Approach/Departure angle |
23/10 |
Front / rear hang(mm) |
1250/2650 |
Cabin seats |
2 |
Wheelbase(mm) |
3950(10CBM) 4500(12CBM) |
Number of steel spring |
9/10+8 |
Max speed(Km/h) |
85 |
Specifications of chassis | |||
Model |
EQ1121GLJ |
Chassis type |
Lorry type |
Brand |
DONGFENG |
Producing factory |
DONGFENG AUITOMOBILE CO.,LTD |
Size(mm) |
7600,7900,8900x2480x2810 |
Number of tire |
6 |
Approach/Departure angle |
32/22,32/20 |
Tire model |
9.00-20(wheelbase3950mm) 10.00-20(wheelbase4500mm) |
Spring plate number |
9/10+8 |
Front track(mm) |
1940 |
Fuel |
Diesel |
Rear track(mm) |
1860 |
Emission standard |
GB3847-2005,GB17691-2005 EUROⅢ | ||
Engine model |
Engine Factory |
Displacement |
Power |
B190 33 |
DONGFENG CUMMINS ENGINE CO.,LTD |
5900 |
140(190HP) |
SPECIAL FUNCTIONS |
Garbage capacity(m3):10-12 |
Filled mouth along the ground clearance (mm): 860 | |
Filling cycle time(s:)30 |
Once unloading garbage working time (s): 40 | ||
Filled once loaded garbage time (s):12 |
Max crushing compression force (T): 16 | ||
Max row unloading force (T): 18 |
Filled Lifting time (S): 15 | ||
Remark 1 |
Vehicle protection materials: carbon Steel with Q235 Dumping type: rear dumping | ||
Remark 2 |
Can meet special requirements like adding AC, change color, order RHD drive, extra side warming lights, order extra Main accessories for engine, etc. | ||
Free parts for each Truck |
5x sets brakes pads;1 X sets brake shoes;3x Oil Filter;3 x air filter;3xdiesel filter,21x front Shocks | ||
Payment |
30% TT for down payment,70% TT balance Before delivering to CN port | ||
