| Length: | 1000meters or on request |
|---|---|
| Jacket Material: | Flame retardant PVC |
| Conductor Material: | Bare solid copper conductor |
| Shielded Cable: | Yes |
| Type: | Indoor |
| Model Number: | CAT3-50P |
| Brand Name: | T&J |
| Place of Origin: | China (Mainland) |
| Number of Conductors: | 50 pairs |
| Rated Voltage: | 220V |
| Operating Temperature: | -30C~+50C |
| Impedance (ohms ): | 100 |
| Certificate: | UL, ETL |
| Type: | Cat 3 |
| Application: | Telecommunications |
| Origin: | China |
Quick Details
Specifications

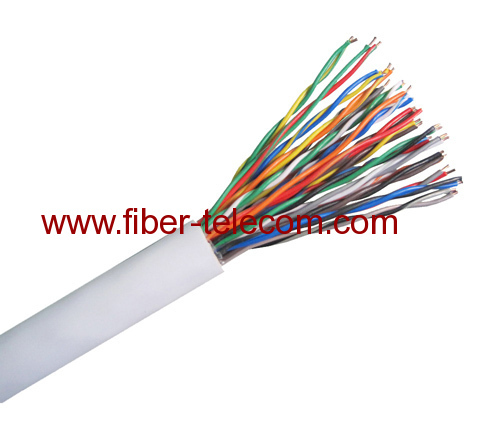

Category3 UTP Telephone Cable 50pairs
Cat3 cable is a type of twisted pair cable frequently used in voice and data applications, available to provide in 10 pairs / 20 pairs / 50 pairs / 100 pairs...Phone cable is defined by the Electronic Industry Alliance (EIA) and Telecommunication Industry Association (TIA). T&J provide Cat3 phone cable is quality manufactured to meet standards for EIA/TIA 568 and ISO/IEC 11801 specifications.

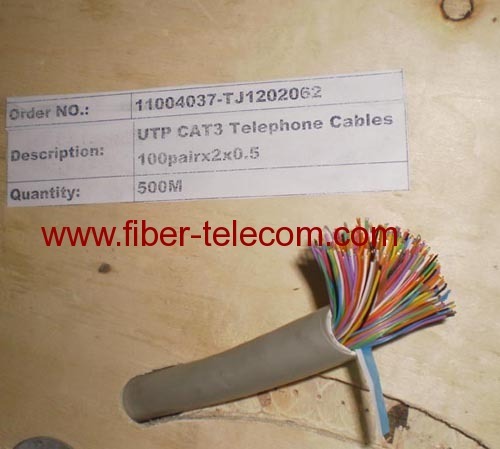

Technical details for UTP CAT3 Cable 50pairs & 100pairs:
| Part Number | Utp cat3 50P Indoor | Utp cat3 100P Indoor | |
| Conductor | Diameter(mm) | 0.5±0.01 | 0.5±0.01 |
| Material | Bare Copper | Bare Copper | |
| Type | Solid | Solid | |
| Dielectric(Insulation) | Diameter(mm) | 0.9±0.01 | 0.9±0.01 |
| Material | Solid PE | Solid PE | |
| CORE WRAPPING | Material | plastic tape | plastic tape |
| Thickness (mm) | 0.04 | 0.04 | |
| Jacket(sheath) | Thickness (mm) | 1.1 | 1.3 |
| Diameter(mm) | 15±0.5 | 20.5±0.5 | |
| Material | Flame retardant PVC | LLPE | |
| Color | Grey | Flame retardant PVC | |
| Number of Pairs | 50pairs | 100pairs | |
| Weight (kgs/km) | 325 | 600 | |
| Attenuation(10MHz dB/100m) | 6.5 | 6.5 | |
| next (100MHz dB/100m) | ≥35.3 | ≥35.3 | |
| ELFEXT (100MHz dB/100m) | ≥23.8 | ≥23.8 | |
| RL (100MHz dB/100m) | ≥20.1 | ≥20.1 | |
| Impedance (ohms ) | 100 | 100 | |
| Operating Temperature Range(℃) | -20 to 75 | -20 to 75 | |

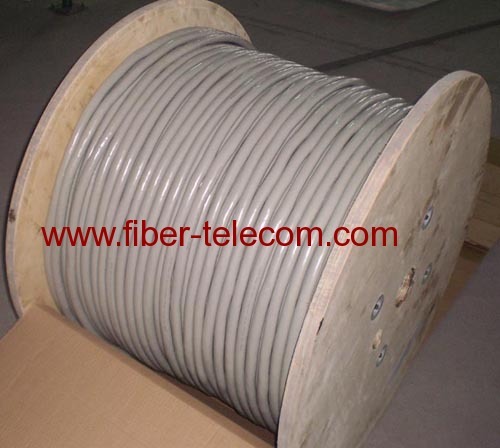

| Package | 305/1000meters/roll | 305/1000meters/roll | |
Category3 UTP Telephone Cable 50pairs
