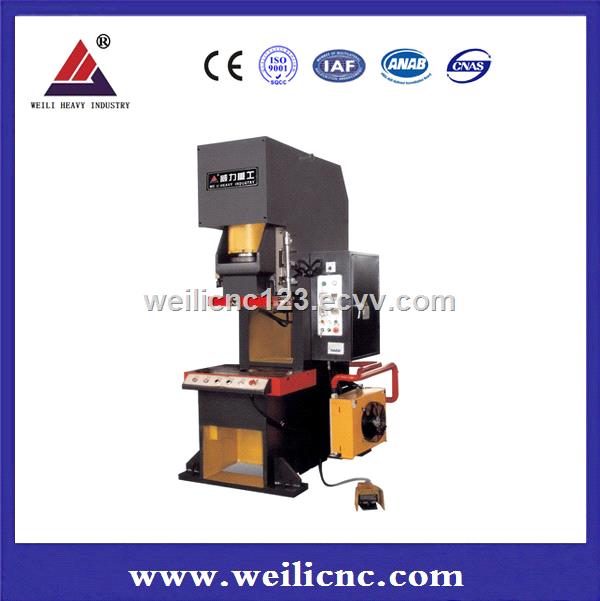

Hydraulic Punching  machine YWH21-100T





Funchion:Blanking, drawing and pressing of plastic materials. Such as: sheet punching, bending, flanging, sheet drawing, fine blanking, cold extrusion of metal parts.

Can also be used for correction, pressing, grinding wheel forming, plastic and powder molding.



Featrues:hydraulic transmission, has the advantages of hydraulic and mechanical presses, can arbitrarily change the size of pressing force, not to overload, and can realize the pressing requirements of pressure maintaining and time delay of each step in the process.



in order to achieve slider fast air downward and return. the machine is equipped with the growth rate of cylinder, when it comes into contact with the workpiece automatically turn to slow work, reduce the pump displacement and the power of the motor, reduce the noise.



the photoelectric protection device can be installed in front of the working platform, and a protective screen is formed on the working platform to protect the personal safety of the operator.



Machine tool for centralized button, can realize the adjustment, semi-automatic and automatic three kinds of operation.



Therefore, the machine has the advantages of novel structure, reliable performance, complete function and high production efficiency, and is a new generation product of a mechanical press.



Technical parameters



Specification	Unit	YWH21-100T	YWH21-125T	YWH21-160T
Nominal pressure	KN	1000	1250	1600
Liquid maximum working pressure	mpa	22.5	25	25
the slider range	mm	180	220	220
the slider working times	1/min	10-40	10-40	10-40
the largest closed height	mm	470	520	520
Travel adjustment amount	mm	180	220	110
the depth of the throat	mm	310	350	350
the workbench high off the ground	mm	770	870	920
under the fast speed	mm/s	210	250	230
Work speed	mm/s	14	16	10
the return rate	mm/s	195	200	170
the slider base size	mm	500×350×Φ60	600×500×Φ60	600×500×Φ60
Table size	mm	850×600×Φ180	1000×650×Φ200	1000×650×Φ200
Machine dimension	mm	1350×1630×2500	1600×1850×3400	1700×2000×3500
the motor power	kw	7.5/6	11/6	22
the oil pump	ml/r	40	63	63
Machine weight	kg	5000	8500	11000



Specification	Unit	YWH21-200T	YWH21-250T	YWH21-315T
Nominal pressure	KN	2000	2500	3150
Liquid maximum working pressure	mpa	25	25	25
the slider range	mm	220	220	200
the slider working times	1/min	10-40	10-40	10-40
the largest closed height	mm	520	520	700
Travel adjustment amount	mm	110	110	200
the depth of the throat	mm	400	350	350
the workbench high off the ground	mm	920	1020	1020
under the fast speed	mm/s	230	200	150
Work speed	mm/s	10	6	6
the return rate	mm/s	170	100	100
the slider base size	mm	700×580×Φ65	680×540×Φ70	1600×600×Φ70
Table size	mm	1300×740×Φ200	1300×740×Φ200	1700×750×Φ200
Machine dimension	mm	1800×2100×3600	1900×2200×3700	2000×2300×3800
the motor power	kw	22	22	37
the oil pump	ml/r	80	80	80
Machine weight	kg	14000	22000	26000
