| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 months |
| Certification: | iso9001:2008 |
| Weight: | 5.5t |
| Model Number: | 1200 |
| Brand Name: | zs |
| Place of Origin: | China (Mainland) |
| Capacity(t/h): | 1t/h |
| Power(W): | 7.5kw |
| Motor Type: | asynchronous motor |
| Type: | cone wet grinding mill |
| Condition: | New |
| application: | gold mine |
| use with: | mercury |
| power: | 7.5kw |
Quick Details
Specifications

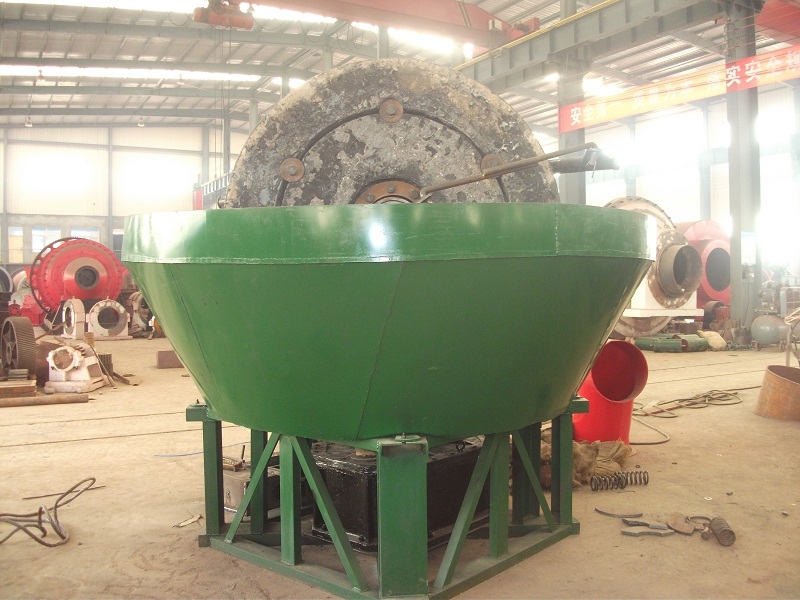

Wet pan mill, wet grinding mill, cone wet grinding machine:
Wet grinding machine is made of restructuring on the basis of conventional machine,for the traditional machines, the work piece is large and short lifetime, electrical power large, installation cycle is long, the User can not immediately put into production, maintenance and replacement of Materials need for large lifting equipment.
Cone Wet Grinding Machine, wet pan mill, wet grinding mill main technical parameters:
Model |
Specification(mm) |
Feeding size |
Speed(r/min) |
Power(kw) |
Weight(t) |
1600A |
1600*500*200*500+20 |
Feeding size less than 3cm |
20-22 |
37 |
14.5 |
1500A |
1500*350*200*460+20 |
20-22 |
22 |
13.3 | |
1500B |
1500*350*150*460+20 |
20-22 |
22 |
12.3 | |
1500C |
1500*300*150*420+20 |
20-22 |
18.5 |
11.3 | |
1400A |
1400*250*150*350+20 |
16-18 |
18.5 |
8.5 | |
1400B |
1400*250*150*350+20 |
21-23 |
18.5 |
8.5 | |
1350A |
1350*250*150*350+20 |
16-18 |
18.5 |
8 | |
1350B |
1350*250*150*350+20 |
21-23 |
18.5 |
8 | |
1300A |
1300*250*150*350+20 |
16-18 |
15 |
7.5 | |
1300B |
1300*250*150*350+20 |
21-23 |
15 |
7.5 | |
1200A |
1200*220*80*270+20 |
17-19 |
7.5 |
5.5 | |
1200B |
1200*200*80*250+20 |
23-25 |
7.5 |
5.5 | |
1100A |
1100*200*80*250+20 |
17-19 |
7.5 |
5 | |
1100B |
1100*200*80*250+20 |
23-25 |
7.5 |
5 | |
1000 |
1000*200*80*250+20 |
13-15 |
5.5 |
4.5 |
