Lower Roller Curve Adjustable Rolling Machine

Machine Descriptions:

      W11H series three--roller down roller curve adjustable rolling machine is the newest type rollers in the world. We copied and studied fro Sweden.

       after feeding the metal, we can pre-bending and rolling together.  All of three rollers are power rollers. Down rollers lifting functions controlled by computer.Automatic leveling, the screen flip bearing body (fell) equipped with dump cylinder.

       Roller mounted on the tail of the balancing device was mounted on the tail of the upper roller.

       Each operation by the electric machine centralized control. with a separate console, easy to operate.

      Please e-mail to our factory directly.We will supply technical files to you.

W11HNC50 x 2500 Technical Parameters

No	Description		Unit	Data
1	Type		mm	50×2500
2	Yield limit of plate		MPa	245
3	Suitable width		mm	2500
4	Pre-bending plate thickness		mm	40
5	Bending plate thickness		mm	50
6	Upper roller diameter		mm	520
7	Down roller diameter		mm	480
8	Rolling speed		m/min	4
9	Min rolling diameter in 50 mm thickness		mm	1500
10	Down rollers lifting speed		Mm /min	60
11	Working Pressure		MPa	16
12	Main motor power		kw	45KW
13	Hydraulic Power		kW	11KW
14	Machine weight		Kg	39000
15	Machine Size	Length	mm	6300
		Width	mm	2400
		Height	mm	2910

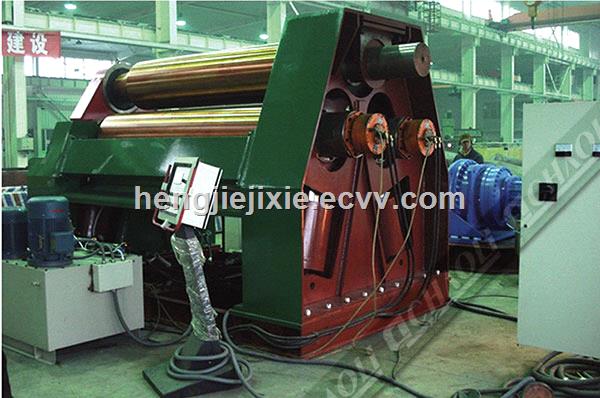

Machine Photos
