Heavy Duty 3-roller Rolling Machine for Ship Building

Machine Productions:

       this type machine structure is produced by 16Mn steel.We often bending or
Rolling the steel plate in the ship building fields. this type Machine is specially
Produced for ship building.

     the machine adopts a3-roller symmetrical structure. the upper roller makes

Vertical movement at a symmetrical position in the center between the two lower

Rollers.

     the hydraulic driving is achieved through the action of the oil in the hydraulic

Cylinder on the posion. the two lower rollers make rotation and provide the plates

with torque through the engagement between the gear of the moderator and gear

 of the lower roller.

   Several groups ofSupport rollers are devised on the lower side of the two lower

Rollersto enhance the rigidity of the lower rollers and enables vertical adjustment.

on the upper side of the upper roller. There is a rigid beam. and between the beam

and the upper roller, there are several groups of support rollers to enhance the rigidity

of the upper roller. the machine is fit for bending the work-piece in arc shape and

with Excessive width.

Main Technical Parameters

Model: W11MNC-

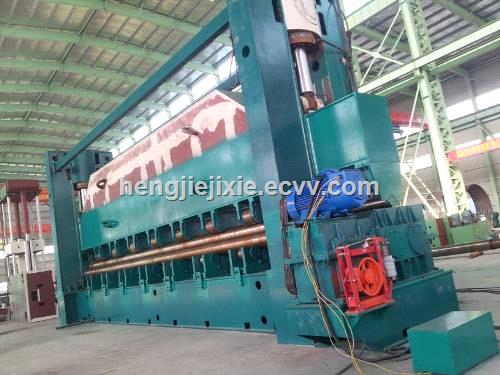

Machine Photos
