| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 months |
| Certification: | iso9001:2008 |
| Weight: | according to model |
| Dimension(L*W*H): | according to model |
| Model Number: | many models |
| Brand Name: | zs |
| Place of Origin: | China (Mainland) |
| Capacity(t/h): | 1-200t/h |
| Application: | mine |
| Type: | Cone Crusher |
| Condition: | New |
Quick Details
Specifications

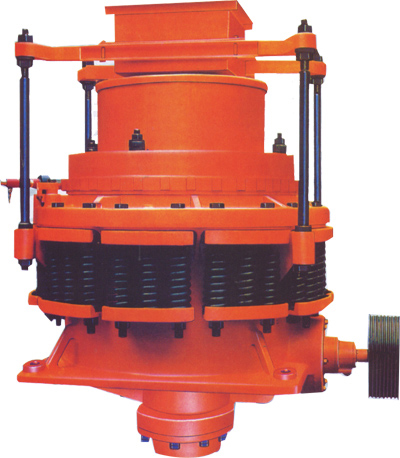

the cone crusher is used for the crushing of raw
Materials in metallurgy, architecture, road construction, chemistry, and
Silicate industry which can grind the MID-hard ore and rock. Cone crushers
Adapt to medium and fine size ore and rock with large crushing ratio, high
Efficiency, low energy consumption, even particle size.
Model |
Dia of Crushing head (mm) |
Max Feed Size (mm) |
Adjusting range of output size (mm) |
Capacity (t/h) |
Motor Power (k w) |
Weight (t) |
Overall Dimension L*W*H(mm) |
PYB-600 |
600 |
65 |
12-25 |
15-25 |
30 |
5 |
2800*1300*1700 |
PYD-600 |
600 |
35 |
3-15 |
5-23 |
30 |
5.5 |
2800*1300*1700 |
PYB-900 |
900 |
115 |
15?20 |
50-90 |
55 |
10.2 |
3050*1640*2350 |
PYZ-900 |
900 |
60 |
5-20 |
20-65 |
55 |
10.2 |
3050*1640*2350 |
PYD-900 |
900 |
40 |
3-13 |
15-50 |
55 |
10.3 |
3050*1640*2350 |
PYB-1200 |
1200 |
145 |
20-50 |
110-200 |
110 |
24.7 |
4152*2300*2980 |
PYZ-1200 |
1200 |
100 |
8-25 |
50-15 |
110 |
25 |
4152*2300*2980 |
PYD-1200 |
1200 |
50 |
3-15 |
18-105 |
110 |
25.6 |
4152*2300*2980 |
