CBT1008 Wall Mounted Network Cabinet

Specification:

• One section wall mount rack

• Frame structure, max loading 60kgs

• the frame can be moved according to requirement

• Wall and stand installation type, optional caster and support feet for stand installing

• Quick open side door with lock easy to install and maintain

• Top and bottom wire path

• Optional 120mm axial motor 1 piece or 2pieces



Material:

SPCC Quality Cold Rolled Steel



Thickness:

Square Hole Strips 2.0mm, others 1.2mm



Color:

RAL9004, RAL7044



Surface Finish:

Degrease, acid picking, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting



Standard: Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, GB/T3047.0-92



Ordering Capacity:  4U - 27U

Ordering information:

ORDER NO.	Capacity	Width	Depth	Height	Package Volume
CBT1008-6404	4	600	450	279	0.0820
CBT1008-6406	6	600	450	368	0.1211
CBT1008-6409	9	600	450	501	0.1603
CBT1008-6412	12	600	450	635	0.1998
CBT1008-6415	15	600	450	769	0.2421
CBT1008-6418	18	600	450	901	0.2812
CBT1008-6422	22	600	450	1082	0.3272
CBT1008-6427	27	600	450	1304	0.4052
CBT1008-6604	4	600	600	279	0.1080
CBT1008-6606	6	600	600	368	0.1588
CBT1008-6609	9	600	600	501	0.2104
CBT1008-6612	12	600	600	635	0.2661
CBT1008-6618	18	600	600	901	0.3691
CBT1008-6622	22	600	600	1082	0.4406
CBT1008-6627	27	600	600	1304	0.5279

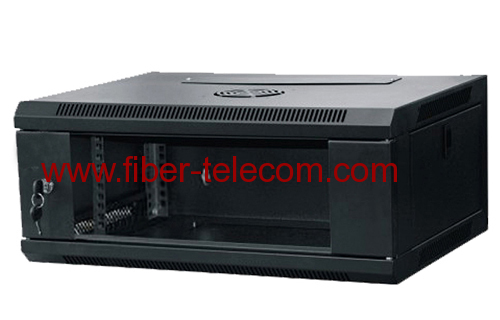

Wall Mounted Network Cabinet:
