| Model Number: | CBT1006 |
|---|---|
| Brand Name: | T&J |
| Place of Origin: | China (Mainland) |
| Capacity: | 22U-47U |
| Material: | SPCC Quality Cold Rolled Steel |
| Thickness: | 2.0mm |
| Color: | RAL9004, RAL7044 |
| Surface Finish: | Degrease, acid picking, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting |
| Standard: | Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, GB/T3047.0-92 |
| Origin: | China |
Quick Details
Specifications
CBT1006 Floor Standing Open Rack
Specification:
Combination design, easy setup, low cost, easy install and uninstall, transport, assembly
Detachable composite structure
Spare part can be ordered as requested
Material:
SPCC Quality Cold Rolled Steel
Thickness:
2.0mm
Color:
RAL9004, RAL7044
Surface Finish:
Degrease, acid picking, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting
Standard: Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, GB/T3047.0-92
Ordering Capacity: 22U - 47U
Ordering information:
| ORDER NO. | Capacity | Width | Depth | Height |
| CBT1006-001 | 22 | 550 | 100 | 1119 |
| CBT1006-002 | 32 | 550 | 100 | 1562 |
| CBT1006-003 | 42 | 550 | 100 | 2007 |
| CBT1006-004 | 47 | 550 | 100 | 2230 |

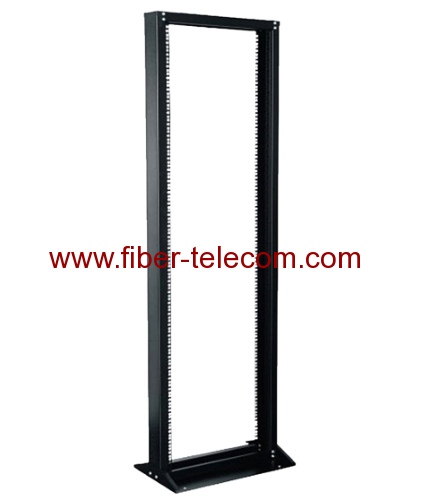

Floor Standing Open Rack:
