Working principle:

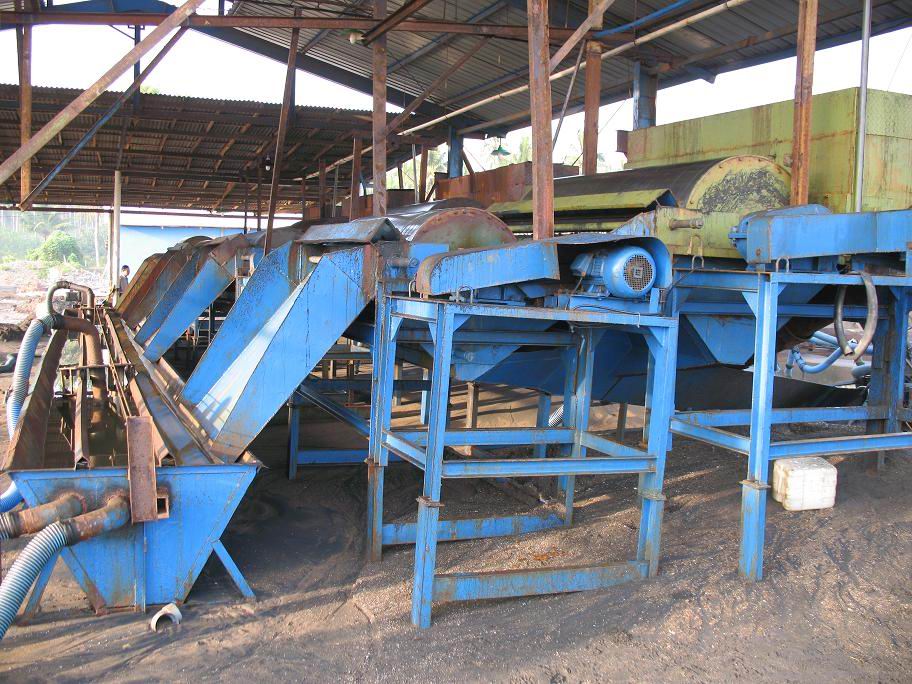

When the ore pulp flow into the magnetic field, the strong Magnetic minerals are adsorbed on the surface of the drum. the weak magnetic and non-magnetic minerals are cast off and discharged, while the strong magnetic Minerals on the surface of the drum rotate with the drum and will be brought Out of magnetic field to complete the sorting operation.

Main technical parameter:

	Magnetic strength(gs)	Working capacity(t)	Motor power(kw)	Weight(kg)
CTB600x900	1450	8-15	1.1	910
CTB600x1200	1450	10-18	2.2	1050
CTB600x1800	1500	15-25	2.2	1340
CTB750x1800	1550	30-45	3	2050
CTB900x1800	1650	35-60	4	3000
CTB1050x2400	1650	60-95	5.5	5020
CTB1200x2400	1650	60-120	5.5	6300
CTB1200x3000	1650	80-150	7.5	7800
CTB1500x3000	1650	120-200	11	9600
