| Brand Name: | ACEAIR |
|---|---|
| Model Number: | PV400P015NC-304 |
| Place of Origin: | China (Mainland) |
| Port Size: | DN15-100 |
| Media: | Water |
| Temperature of Media: | High Temperature |
| Material: | Stainless Steel |
| Power: | Pneumatic |
| Pressure: | Medium Pressure |
| Structure: | Plug |
| Standard or Nonstandard: | Standard |
Quick Details

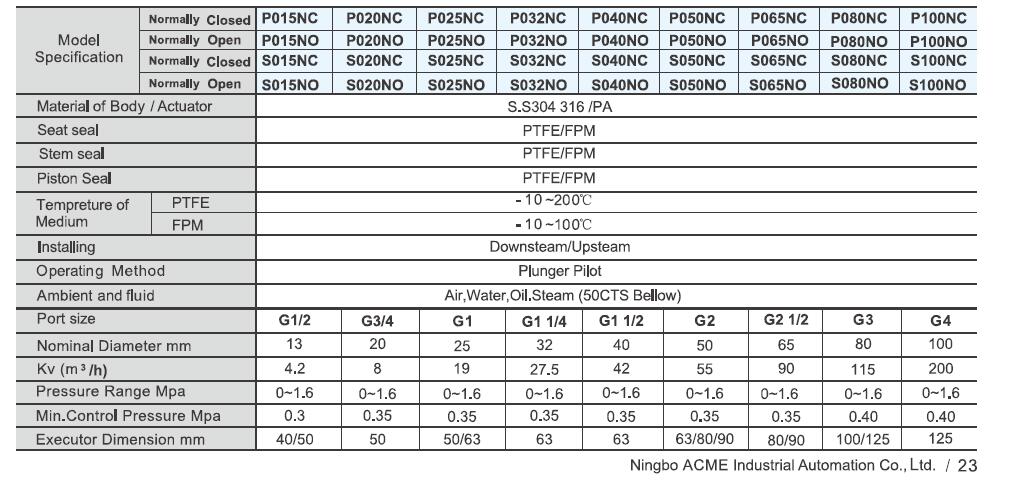

Specifications
Flange Specification: DIN2576(GB/T82.1)

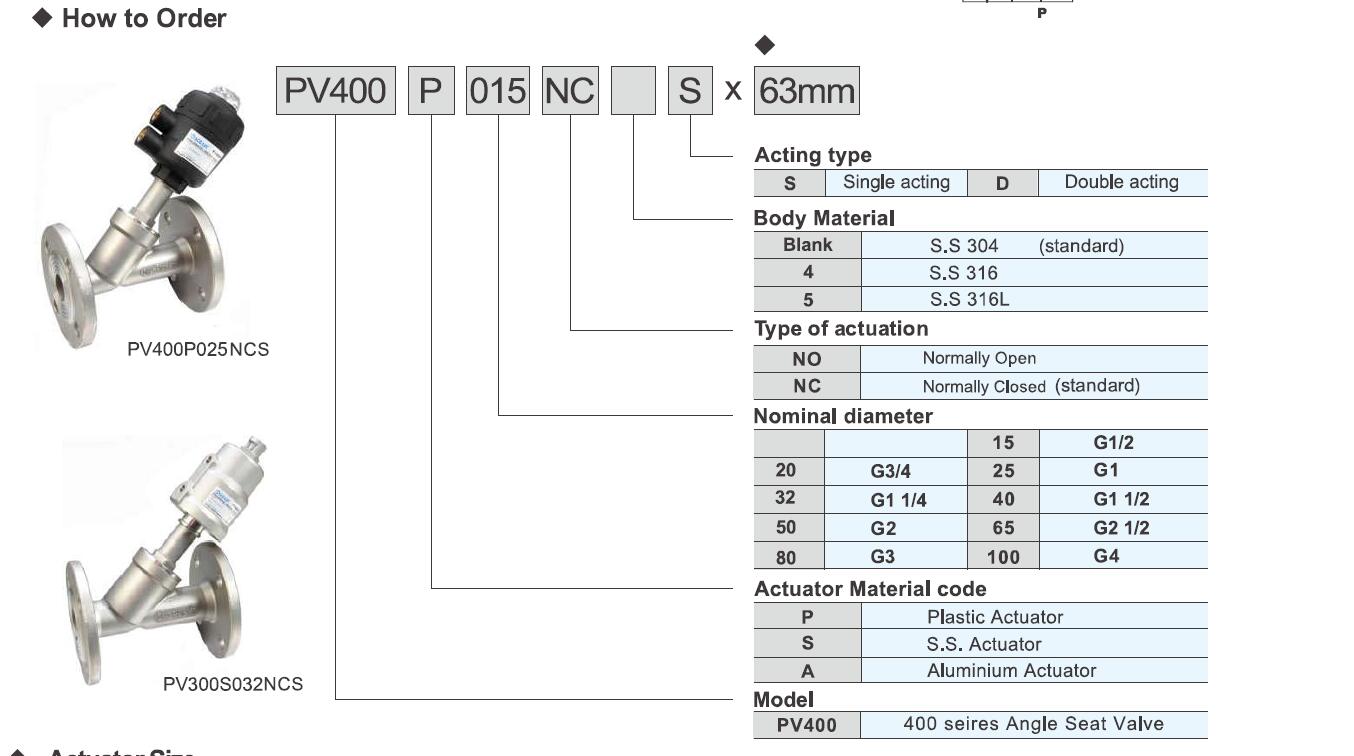

- PV400 Series Plunger pilot angle seat valve is propelled by a piston actuator, either single acting or dbouble acting.
- Actuators are made of 3 different materials, applicable to different working temperatures
- 2/2 Way stainless steel valve with big flow capacity
- V type seals ensure reliable and effiective sealing.
- Maintenence free, compabible with various accessories;
- Direction indicating, stroke limiting or manual switching can be achieved conveniently.
