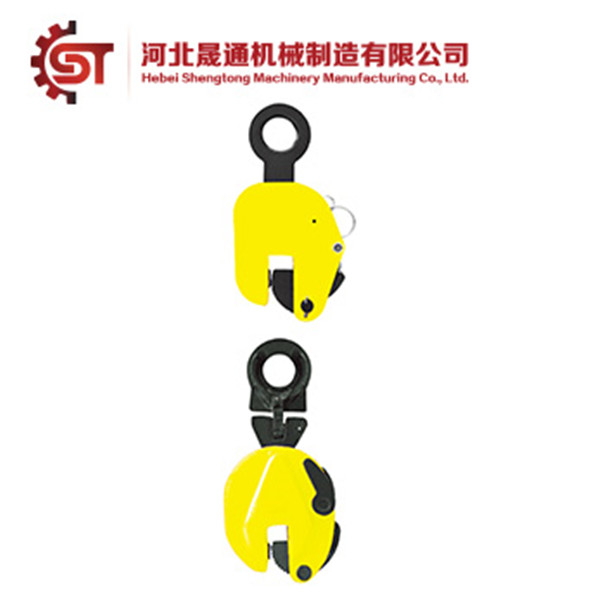

Application:vertical lifting of steel plate

Material: Low carbon alloy steel

Loading range:0 to 10 ton

One pieces of clamp is used for the testing,and one pieces or two pieces are recommended for lifting operation.

Multi plates can not be lifted,only lift one piece of clamp on time.up the lock lever to tighten lock spring when it under loading.Down the lock lever to loose lock spring when you unload.

Tested load is 2 times of working load

Operating over loading is prohibited

Durable enduring,easy operation

Application: Horizontal vertical or reversal of steel plate

One pieces of clamp are used for the testing,and one piece is recommended for lifting operation,blance beam is needed for horizontal lifting

Application: Horizontal lifting of steel plate

Two pieces of clamp are used for the testing,but 2 pieces or 4 pieces are recommended for lifting operation,blance beam is needed for big size steel plate

Application: for lifting and transporting multi steel plate

Can according to the thickness of steel plate to regulate suitable pliers tongue size,must using with balance beam

Ari.NO.	WLL/Pair(t).	Steel Plate Thickness(mm)
CDH1	1	0-20
CDH2	2	0-25
CDH3.2	3.2	0-35
CDH5	5	0-50
CDH8	8	0-60
CDH10	10	0-80
