| Head Code: | Eblow |
|---|---|
| Shape: | Q type |
| Connection: | Flange |
| Brand Name: | Yuhang |
| Model Number: | YGS-F32 hot oil rotary joint |
| Place of Origin: | China (Mainland) |
| Type: | Flange |
| Technics: | Casting |
| Material: | Precision cast steel |
| Product name: | Hot oil rotary joint |
| Certification: | ISO9001:2008 CE |
| Pressure: | 20 bar |
| Temperature: | 340 deg |
| Speed: | 200 rpm |
| Medium: | Hot oil Steam |
| Seal: | British Morgan |
| Flange standard: | DIN ANSI JIS |
| Seal structure: | Double ball seal |
| Size: | DN15 ~ DN125 |
Quick Details
Specifications
Various models Flange connection high temperature hot oil steam rotary joint British Morgan seal
Please look at the product details:
Product Details | |||||
| Brand | YUHANG or as customer's requirement | ||||
| Max.Pressure | 20 bar | ||||
| Max.Temperature | 340 ℃ | ||||
| Max.Speed | 200 r/min | ||||
| Medium | Steam Hot oil | ||||
| Size | 1/4'' ~ 6'' ; Welcome to customed size | ||||
| Connections | Flange | ||||
| Standard | DIN ANSI JIS | ||||
| Material | Precision cast steel | ||||
| Seals | British Morgan | ||||
| Usage | Printing and dyeing textile | ||||
| Certified | ISO9001:2008 CE | ||||
| Color | as customer's requirement | ||||

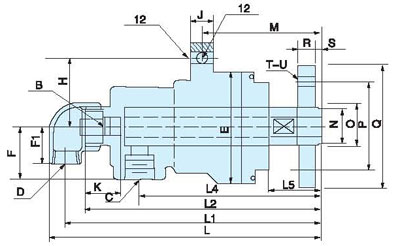

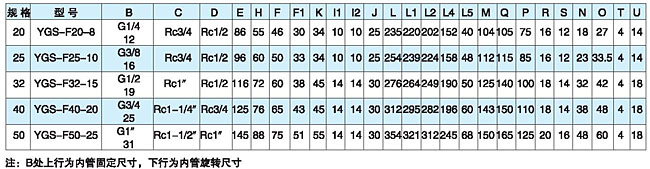

Product drawings
Product advantage:
- Choose the best material to make and become,reasonable design,advanced structure
- Can need according to the working environment and temperature adopt different materials of seal
Sealing adopts international advanced sealing technology,has reliable sealing performance
- Chinese manufacturer specializing in the production of hot oil rotary joint
- Can develop according to customer's drawings or samples
- ISO9001 CE GS

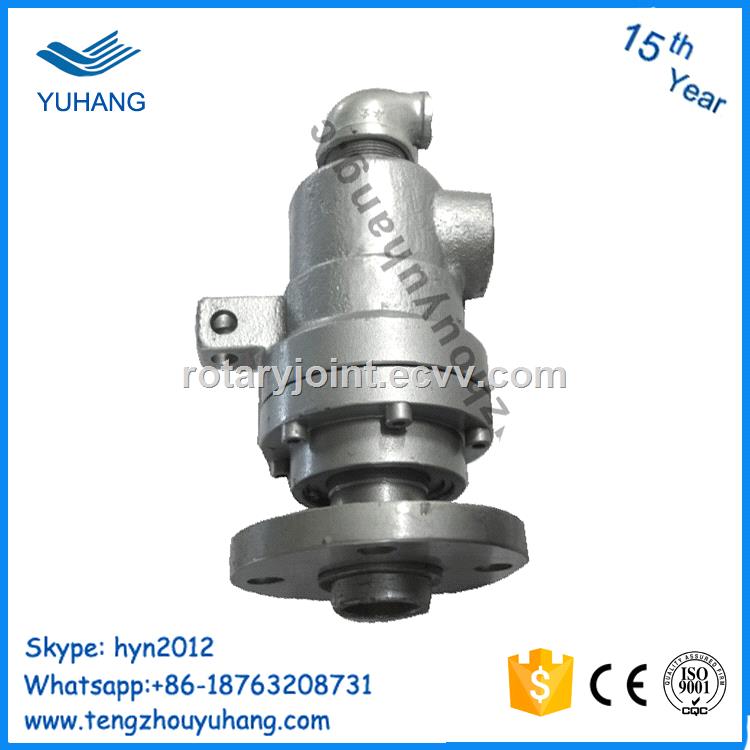

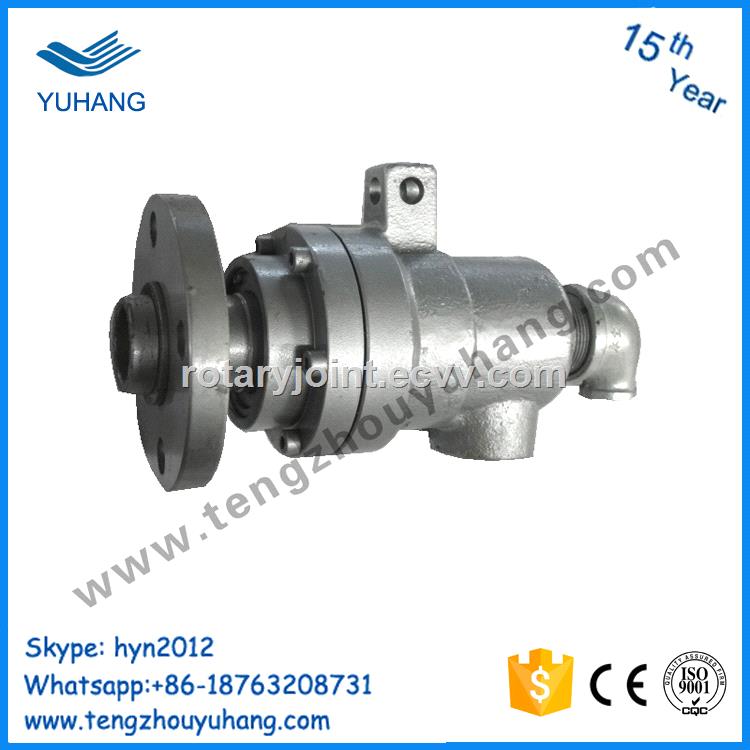

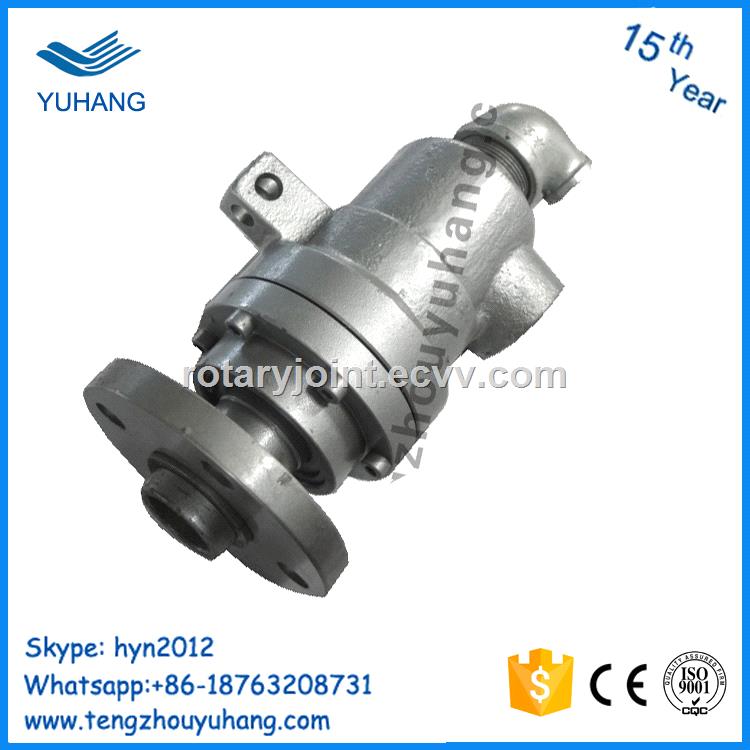

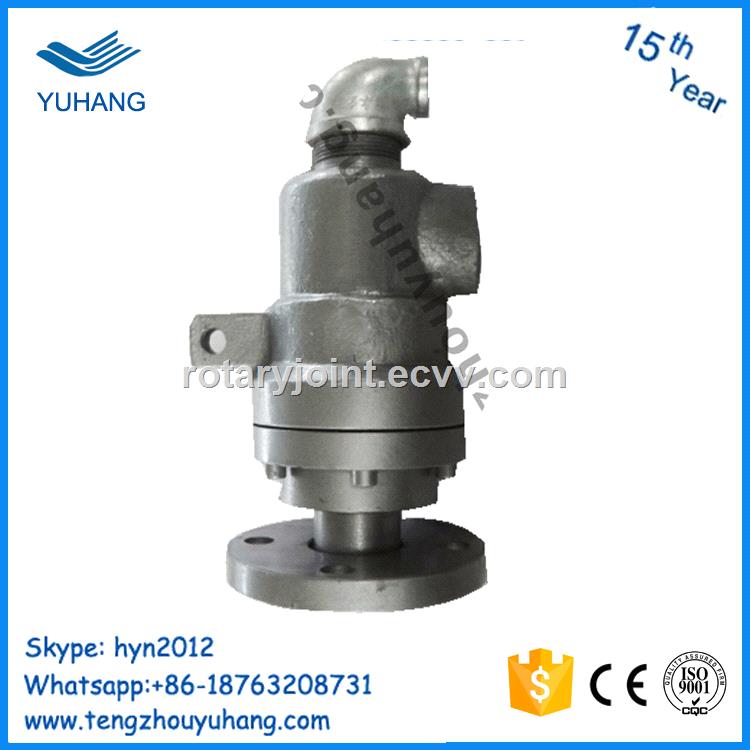

Product display
