this 2x2 HDMI Switcher/Splitter can connect two HD signal sources with two HD display terminals, it allows two HDMI signals to be split or switched to two HDMI compatible monitors or projectors. and it can amplify your HDMI signals at the same time.
this two singal sources can be switched freely via button or remote control. the HDMI Switcher/Splitter also can support full HD video format, highest resolution up to 1080p/60Hz.

Features:
Support HDMI 1.4a
Support 3D
Support highest video resolution 1920x1080p/60Hz
Support 2.25Gbps data rate for tmds clock up to 225MHz
Support 8/10/12 bit deep color
Support AWG26 HDMI standard cable, input up to 15 metres, output up to 25 metres
Support single high definition display and multiple output HD signal sources, such as DVD Players, A/V receivers and Set Top Boxes
IR Remote Control for operational flexibility and easy control
Need DC5V/1A power supply

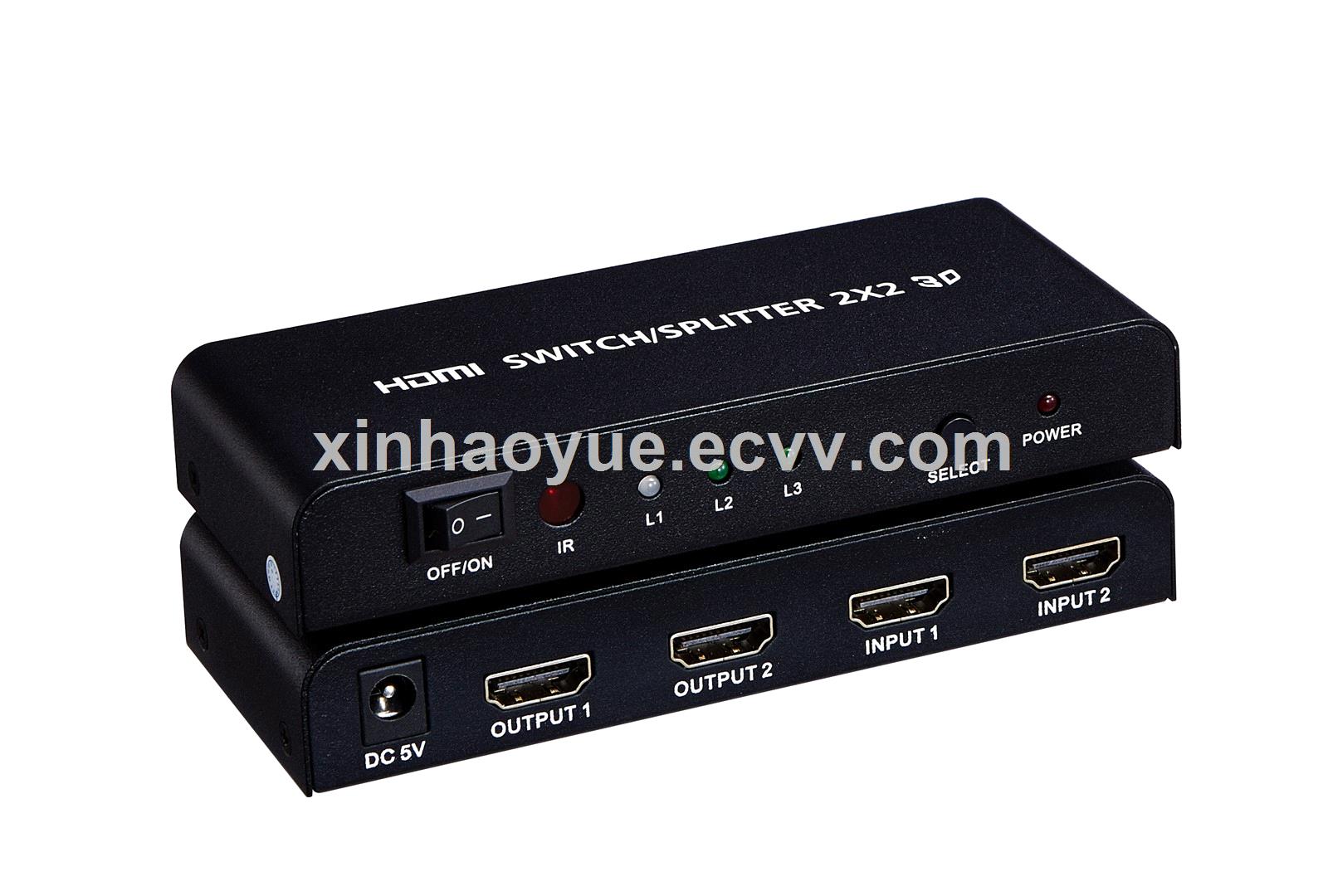

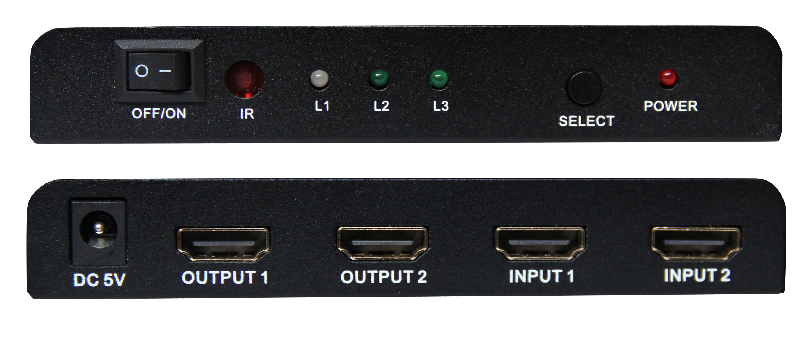

Product Pictures:

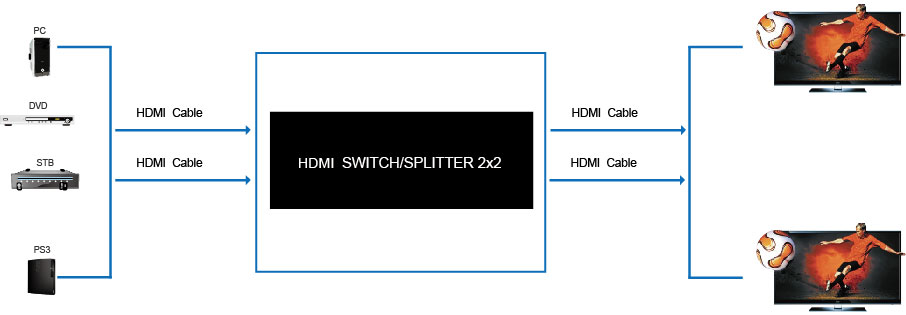

Physical Connection Showing Picture


IR Remote Control:

1) Press the key 1 to switch to the input 1, L1 indicator turns red

2) Press the key 2 to switch to the input 2, L1 indicator turns blue



Specification:
HDMI version   ………………………………………..…………………………….. HDMI 1.4a
HDMI resolution …………………….......24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video format ……………………....................……..……..…  8/10/12 bit deep color
Support audio format……………..............…. DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth………………………………………………………….………………….225MHz
Max baud rate……………….…….………………….……………………...................2.25Gbps
Input cable distance..…... …………………………..……≤15m AWG26 HDMI standard cable
Output cable distance………………………………….…...≤25m AWG26 HDMI standard cable
HDMI Input Port.....................................................................................................................2
HDMI Output Port...................................................................................................................2
Max working current……………………….……………..……………………………….....500mA
Power adapter format.........................Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….………………………………… (-15 to +55℃)
Operating Humidity range.......................................................5 to 90%RH (No Condensation)
Dimension (L x W x H) ………………………………..…….….………………128x53x20 (mm)
Weight…..……………………………………………………….....…….………………………140g

Operating and Connecting
1:  Connect HDMI source device and HDMI Switcher/Splitter input with two HDMI cables.
2:  Connect displayer and HDMI Switcher/Splitter output with two HDMI cables.
3:  Connect 5V/1A power adapter to the HDMI Switcher/Splitter.

the Package includes:

1. 2X2 HDMI Switcher/Splitter

2. IR Remote Control

3. 5V DC Power adapter

4. User Manual
