| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Condition: | New |
| Brand Name: | Shengbaote |
| Weight: | 1500kg |
| Model: | GM 400 textile waste recycling machine |
| Material Capabilities: | Thread |
| Product: | |
| Machine Type: | |
| Model Number: | GM 250 textile waste recycling machine |
| Place of Origin: | China (Mainland) |

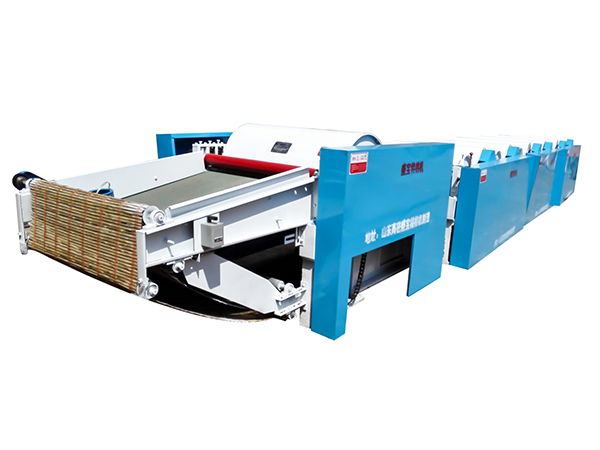

| Name: | GM 250 textile waste recycling machine |
| Cylinder diameter: | 250mm |
| Output: | 100-120kg/h |
Quick Details
Specifications
Feature
this textile waste recycling machineUses
High-speed centrifugal force when operating to get rid of impurities in cotton
and at the same time loosen the lint cotton.
this machine is mainly to process all kinds of lint cotton, old Quilt, cotton clips, landing cotton and flock etc.
Main technical parameters:
Output:100-120kg/h
Capacity of removing impurities:6%-10%
Diameter of cylinder:250mm
Rotation speed of cylinder: 1900 rpm/min
5.Diameter of pressure cotton Roll: 1400mm*985mm
6. Fan: 1.1kw
7. Rotation speed of fan: 2900rpm/min
8Chain: t=19.5mm
9. Model of taker-in: 5610*1.09*6 teeth/inch
Bearing of taker-in: 111308 Dust cage double chain wheel:205
11. Motor equipped: 7.5kw and 5.5kw and 5.5kw Four grade
12.Overall dimensions:
Length: 3380mm Width: 1500mm Height: 1150mm
