| Model Number: | BJ1043V9JEA-C |
|---|---|
| Brand Name: | FOTON |
| Place of Origin: | China (Mainland) |
| Gross Vehicle Weight: | 4495 |
| Size: | 5995*2120*2270 |
| Engine Capacity: | < 4L |
| Fuel Type: | Petrol / Gasoline |
| Emission Standard: | Euro 3 |
| Transmission Type: | Manual |
| Horsepower: | < 150hp |
| Drive Wheel: | 4x2 |
| Condition: | New |
| color: | white |
| tire: | 700 |
| van size: | 4180*2000*400 |
Quick Details
Specifications

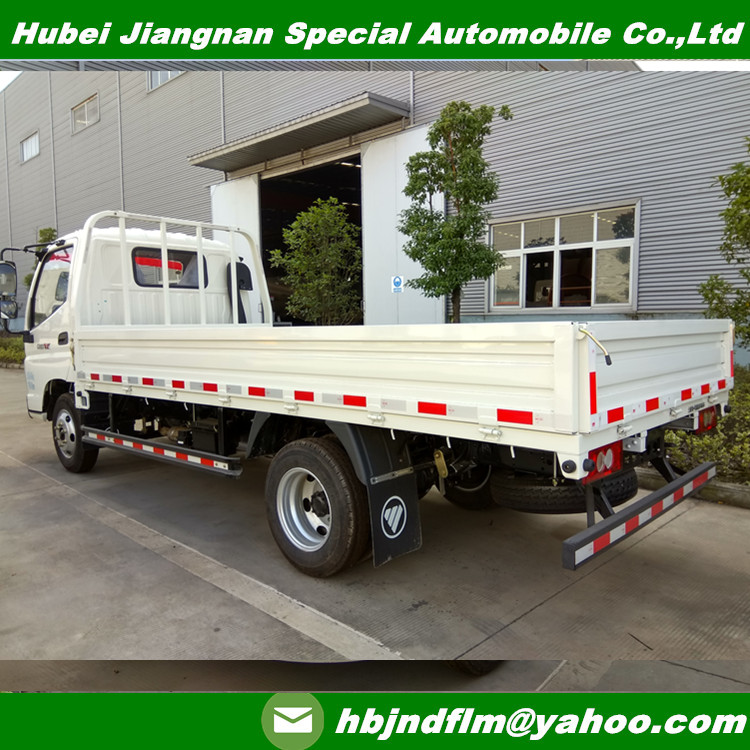

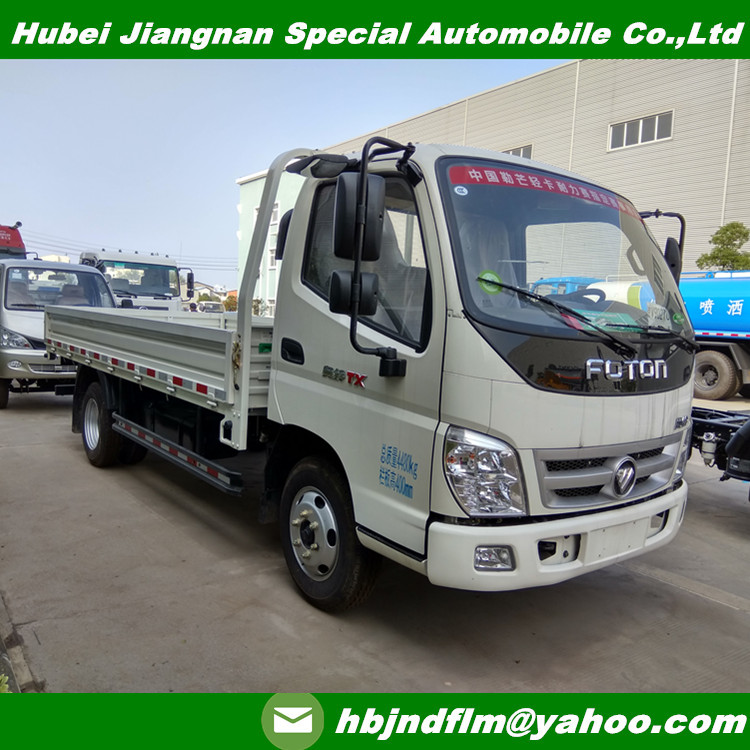

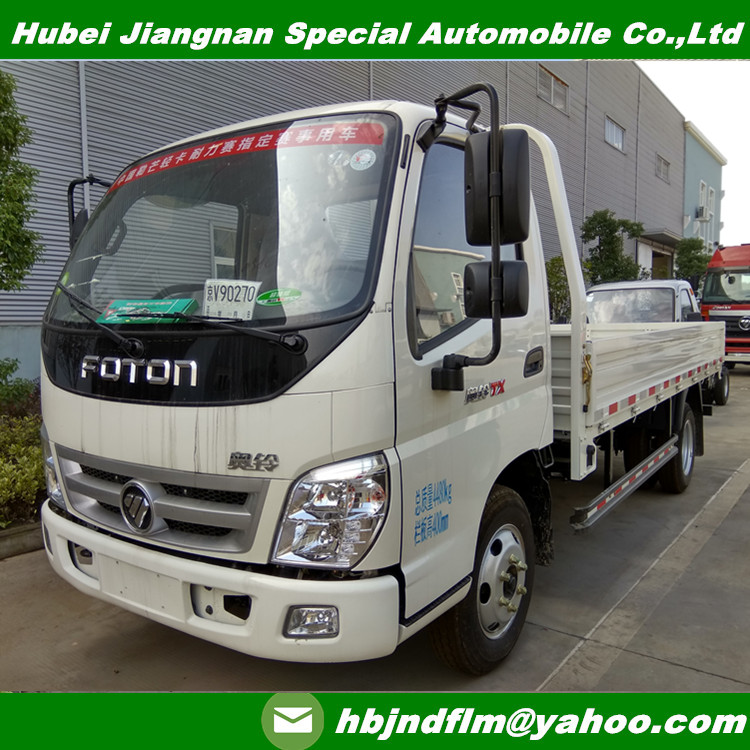

3-5ton Foton Light van cargo truck for sale
If need more details of this model, welcom to contact me at any time.
Main Specification | |||
Brand |
FOTON |
Announcement Batch |
288 |
Name |
BJ1043V9JEA-C van cargo truck |
Product No. |
ZJC1N5990CZ |
Max mass(Kg) |
4495 |
Capicity(m3) |
|
Rated loading (Kg) |
1750 |
Outline size(mm) |
5995*2120,2310,2020,2190,2290*2270,2420 |
Curb weight (Kg) |
2550 |
Van size(mm) |
4230,4100,4180*2000,2100,1900*400,460 |
Cabin Seats |
3 | ||
Approach/depart Angle (°) |
23/19 |
Front/rear Hang(mm) |
1120/1515,1150/1485 |
axles |
2 |
Wheelbase(mm) |
3360 |
Axle loading(Kg) |
1800/2695 |
Max speed(Km/h) |
95 |
Chassis data | |||
Chassis Model |
BJ1043V9JEA-C |
type |
Lorry/camion |
brand |
FOTON |
Factory |
Beiqi FOTON Vehicle Manufacturing Co., Ltd. |
Outline size(mm) |
5865,5895×2054,1990,2095×2200,2350 |
Tires |
6 |
Approach/depart Angle(°) |
23/19 |
Tire model |
7.50-16,7.50R16,7.00-16,7.00R16 |
Steel spring |
4/6+7 |
Front track(mm) |
1730,1555 |
Fuel |
Diesel |
Rear track(mm) |
1590,1525,1630 |
Emission Standard |
GB17691-2005 EURO3,GB3847-2005 | ||
Engine model |
Engine Factory |
Engine model |
Engine Factory |
YZ4DA2-40 |
Weichai Power Yangzhou diesel engine co.,ltd |
3660 |
83 |
