| Color: | White |
|---|
Quick Details
Specifications
| Product Description | ||||

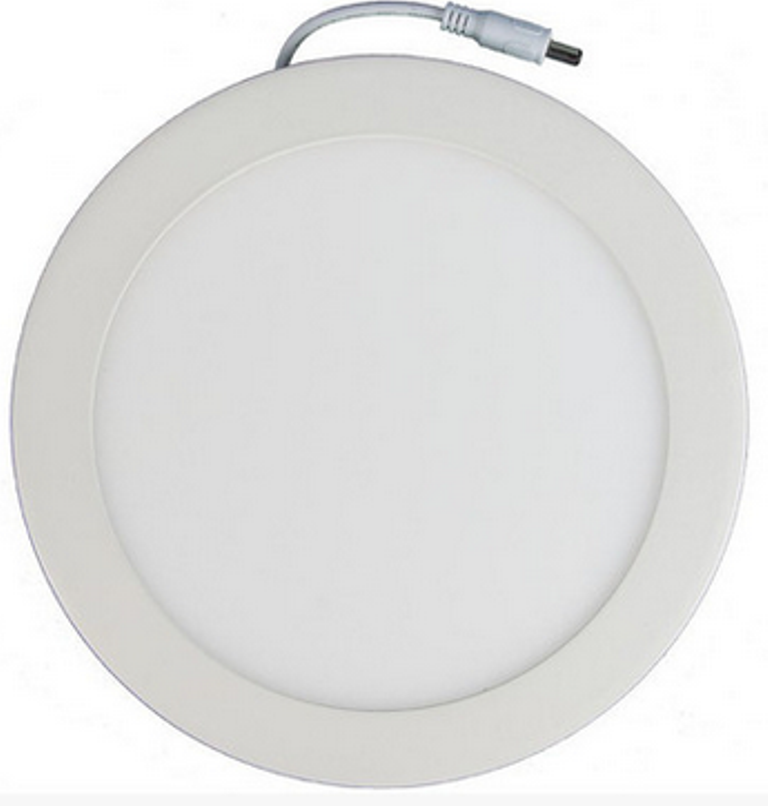

| Product name:LED PANEL LIGHTING | DATA: | 2017.2 | ||
| Input Voltage | AC85-265V | Picture | ||
| Freqency Range | 50HZ/60HZ | Bitmap | ||
| AC adapter Device | Impedance R-L-C | |||
| Isolated | √ | |||
| wire | 0.514CM; white DC catch | |||
| Power-factor | >0.5 | |||
| Power Efficiency | ＞80% | |||
| Surface color | white | |||
| LED Quantity | SMD | 60pcs/2835 | ||
| COB | ||||
| LED Working Voltage | 36V-48V 5B12c | |||
| Consumption | 12W/12W | |||
| System Consumption | 12.5W | |||
| LED Initial flux | WW | 840LM | ||
| NW | 840LM | |||
| CW | 840LM | |||
| Illuminace Uniformity | ＞0.5 | |||
| Color Temperature | WW | 3000K | ||
| NW | 4000K | |||
| CW | 6500K | |||
| Color Temperature | WW/NW | Ra＞80 | ||
| CW | ||||
| Beam Angle | 150° | |||
| Juction Temperature | ＜60℃ | |||
| Operation Temperature | .-40℃~+55℃ | |||
| Storage Temperature | .-25℃+55℃ | |||
| IP Rating | IP20 | Color box/ CM | ||
| Working Life Span | 25000Hours | CM/: KG | ||
| Size/CUT OUT | Φ170*H13mm / Φ160mm | |||
| Certification | CE | |||
