Technical Feature:



1. Adopt Italian advanced technique;

2. Very simple to use;

3. Extreme quickness for the work changes;

4. Versatility on the arrangement of the most particular exigencies;

5. Excellent reliability;

6. High productivity;

7. Completely hydraulic functioning;

8. Noiseless tacking;

9. Work possibility with 22 tacks or with 26 tacks;

10. Tacking of the heel seat with inclined drivers for a better;

11. Clinching of the tacks;

12. Tack pot arranged for the use of 2 different lengths of tacks;

13. Last post for special lasts;

14. Last post outward movement;

15. Last post with special flexing for delicate uppers;

16. Last post with sdjustable ring nut;

17. Adjustable heel band pressure;

18. Adjustable wipwers speed and position;

19. Wipers with adjustable temperature;

20. in/out adjustable tacking position;

21. PLC contrilled processor.



Technical Parameters

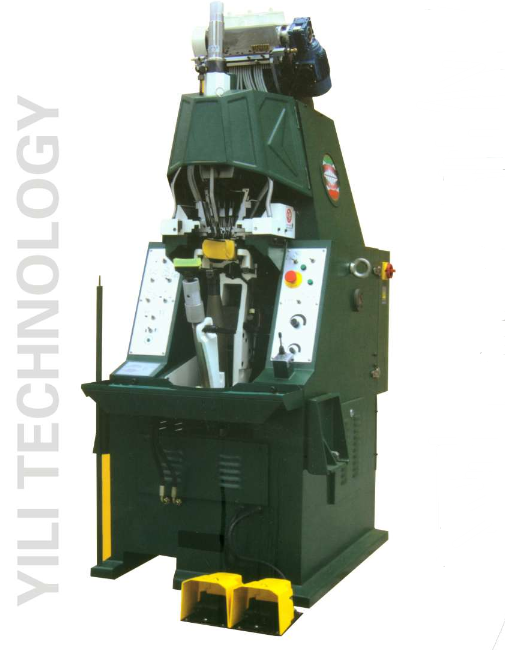

Model	YL-750
Dimension	L80*W120*H200 cm
N.W.	930kg
Voltage	380V
Power	2.9kw
Capacity	3200 Pairs/8hours
