4-Roller CNC Control Hydraulic Rolling Machine




Machine Description:

  this machine canPre-bend the ends of plate and then rollIt to specified shape

with one time loading without reversing it. the working rolls on this machine are

Driving rolls and the lower rolls and two side rolls are hydraulically driven to move

Vertically. this machine is applicable to bending steel plate and can roll plate to

Cylindrical, arc or conical workpiece. It can also pre-bend ends of plate and center the



Plate, so rolling accuracy is high with small residual flat edge and high working

Efficiency. the steel plate can also beRoughly flattenedon this machine.

Main Technical Parameters

Model	Max Rolling Thickness (mm)	Max Pre-bending thickness(mm)	Plate Width mm	Diameter of Upper Roll mm	Diameter of Lower Roller mm	Diameter of Side Roller mm	Main Motor (kw)
W12NC-10X2000	10	8	2000	240	225	180	5.5
W12NC-15X2500	15	12	2500	280	260	225	11
W12NC-20X2000	20	16	2000	300	290	260	15
W12NC-25X3000	25	20	3000	420	400	325	30
W12NC-30X2500	30	25	2500	420	400	325	37
W12NC-35X3500	35	30	3500	550	535	420	55
W12NC-40X2500	40	32	2500	510	490	410	55
W12NC-50X3500	50	40	3500	640	625	480	75
W1NC-55X3000	55	45	3000	640	625	480	75
W12NC-60X3500	60	50	3500	700	680	520	75
W12NC-70X3000	70	60	3000	720	700	550	90
W12NC-80X3500	80	75	3500	840	830	630	55x2
W12NC-90X3500	90	75	3500	890	880	670	75x2
W12NC-100X3500	100	80	3500	925	905	695	45x4
W12NC-120X4000	120	100	4000	1020	1000	770	55x4

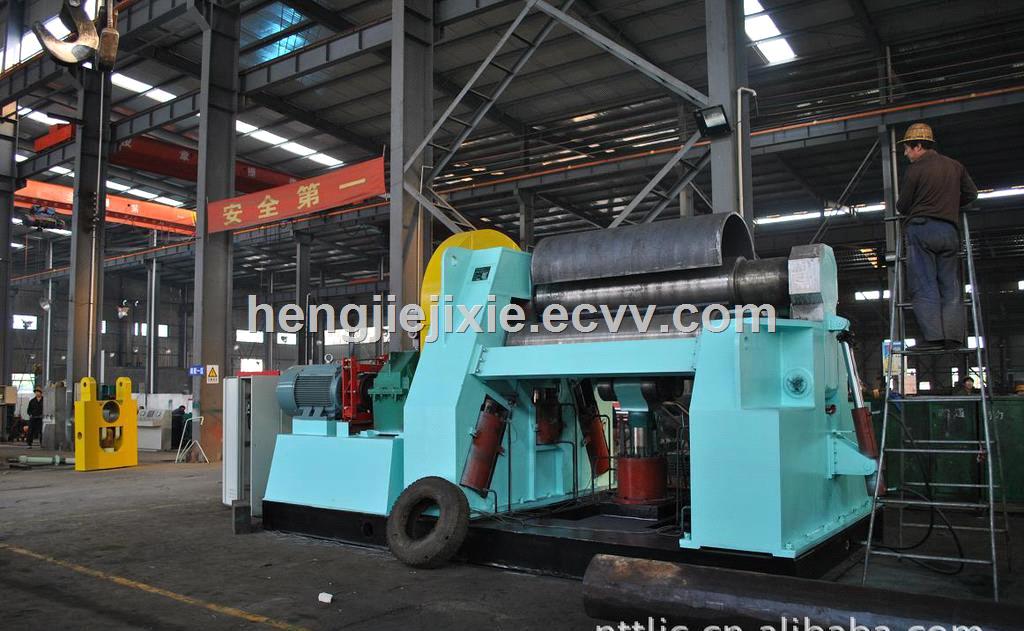

Machine Photos:
