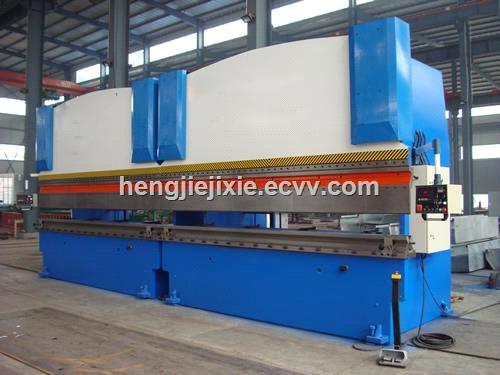

2 Sets Electro-hydraulic Serco Synchronous Bending Machine



Maxchine Introductions
   Two WE67K series in same specification Are choosen as Main Machine with

Double motor linkage Synchro Device,Which may work together to process overlong

Workpiece or operate Separately  to Increase production efficiency. Deflection

Compensationdevice is fitted Too.  Mechanic and fluid  Servos with mechanic slider

Are Utlized in synchronous Device.

    the Stroke of upper beam and the position of rear stopper are regulated quickly by

Machine and micro-regulated by hand with electronic display NC controllers.

Main Technical Parameters



Model	Pressure  KN	Plate Length mm	Column distance mm	Throat depth min	Slide Stroke mm	Open Height mm	Motor power kw
2-WE67K-200/4000	2x2000	2x4000	3500	350	200	450	2x18.5
2-WE67K-250/4000	2x2500	2x4000	3100	400	250	500	2x18.5
2-WE67K-250/6000	2x2500	2x6000	5000	400	250	500	2x18.5
2-WE67K-300/5000	2x3000	2x5000	3900	400	250	535	2x22
2-WE67K-300/6000	2x3000	2x6000	4900	400	250	535	2x22
2-WE67K-400/7000	2x4000	2x7000	6000	450	250	630	2x30
2-WE67K-500/6000	2x5000	2x6000	5050	450	250	650	2x37
2-WE67K-600/7000	2x6000	2x7000	6000	600	250	1000	2x45
2-WE67K-800/7000	2x8000	2x7000	6000	700	300	1000	4x37
2-WE67K-1000/7000	2x10000	2x7000	6000	800	300	1000	4x45
