| Application: | Sewage |
|---|---|
| Pressure: | Low Pressure |
| Fuel: | Diesel |
| Standard or Nonstandard: | Standard |
| Power: | Electric |
| Usage: | Water |
| Structure: | Single-stage Pump |
| Theory: | Centrifugal Pump |
| Model Number: | AH |
| Brand Name: | Naipu |
| Place of Origin: | China (Mainland) |
| OEM: | Yes |
| Certificate: | CE, SGS, ISO |
| Color: | Any |
| Bearing: | ZWZ, SKF, Timken... |
| Drive style: | ZVz, CRz, CV, DC... |
| Material: | A05, A07, A49, R55, S31, S42... |
| Non-standard: | Yes |
| Impeller: | Closed, Open |
| Flow: | 12-5400m3/h |
| Head: | 6-68 m |
Quick Details
Specifications

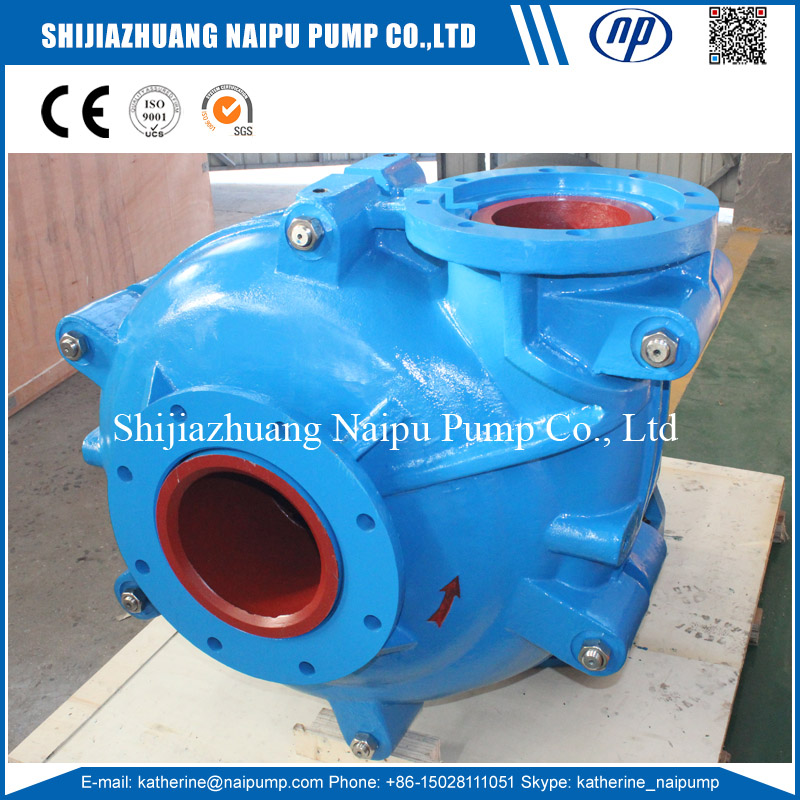

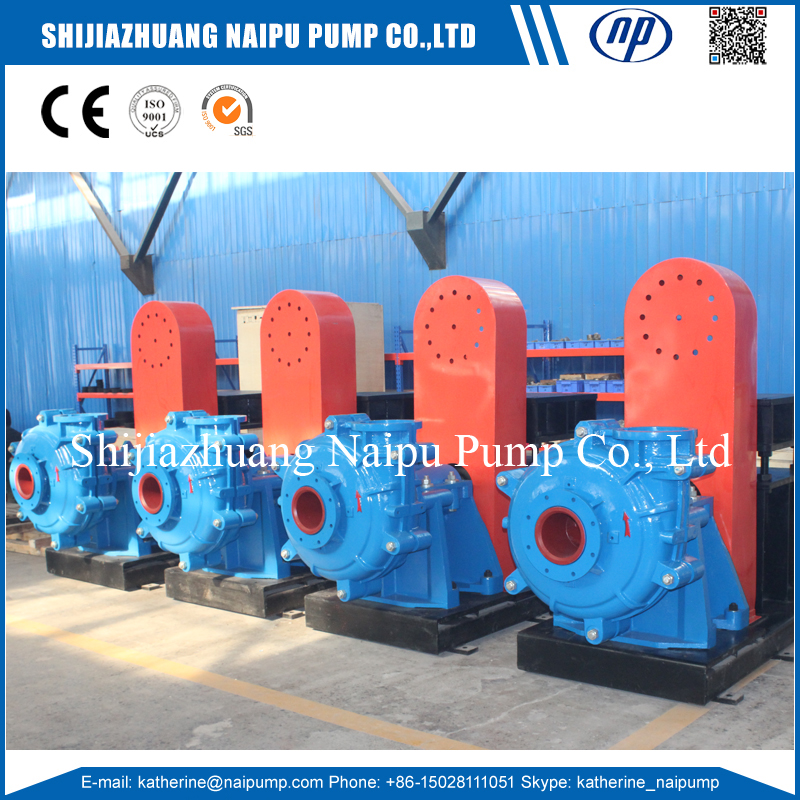

Centrifugal Slurry Pump
AH(R) slurry pumps are suitable for pumping slurry with hard particles and in high density in industrial sectors.
Which with good impeller size and design, its ease of maintenance, the type of shaft seal to be used and the choice
of the optimum materials withstand wear caused by the abrasive, erosive and often corrosive attack on the materials.
They can also be applied Multi-staged in series.
Pump Performance Parameters
Type |
Max. Power Kw |
Clear Water Performance |
Impeller | |||||
Capacity M3/hr |
Head/m |
Speed/rpm |
Efficiency % |
NPSH m |
Nos of Vane |
Diameter mm | ||
1.5/1 B-AH |
15 |
12.6-28.8 |
6-68 |
1200-3800 |
40 |
2-4 |
5 |
152 |
2/1.5 B-AH |
15 |
32.4-72 |
6-58 |
1200-3200 |
45 |
3.5-8 |
5 |
184 |
3/2 C-AH |
30 |
39.6-86.4 |
12-64 |
1300-2700 |
55 |
4-6 |
5 |
214 |
4/3 C-AH |
30 |
86.4-198 |
9-52 |
1000-2200 |
71 |
4-6 |
5 |
245 |
6/4 D-AH |
60 |
162-360 |
12-56 |
800-1550 |
65 |
5-8 |
5 |
365 |
8/6 E-AH |
300 |
360-828 |
10-61 |
500-1140 |
72 |
2-9 |
5 |
510 |
10/8 F-AH |
560 |
612-1368 |
11-61 |
400-850 |
71 |
4-10 |
5 |
686 |
12/10 ST-AH |
560 |
936-1980 |
7-68 |
300-800 |
82 |
6 |
5 |
762 |
14/12 ST-AH |
560 |
1260-2772 |
13-63 |
300-600 |
77 |
3-10 |
5 |
965 |
16/14 TU-AH |
1200 |
1368-3060 |
11-63 |
250-550 |
79 |
4-10 |
5 |
1067 |
18/16 TU-AH |
1200 |
2520-5400 |
13-57 |
200-400 |
85 |
4-10 |
5 |
1370 |
Main part number at the drawing
| 032: Frame Plate 060: Intake Joint 132: Discharge Joint 083: Throatbush 110: Volute Liner 147: Impeller |
122: Stuffing Box Seal 036: Frame Plate Liner 013: Cover Plate 018: Cover Plate Liner 124: Volute Liner Seal 041: Frame Plate Liner Insert |
Materials of construction
| LINERS | IMPELLERS | CASING | BASE | EXPELLER | EXPELLER RING | SHAFT SLEEVE | SEALS | |
| Standard | Chrome Alloy Natural Rubber |
Chrome Alloy Natural Rubber |
SG Iron | SG Iron | Chrome Alloy or SG Iron |
Chrome Alloy or SG Iron |
SG Iron | Rubber and Nitrile |
| Options | Ferralium Hastelloy C 316 SS W151 Polyurethane Neoprene Butyl Viton Nitrile EPDM Hypalon |
Ferralium Hastelloy C 316 SS W151 Polyurethane Neoprene Butyl Nitrile Hypalon |
SG Iron Various grades |
MS Fabricated Cast Iron |
NI Resist Ferralium Hastelloy C Polyurethane 316 SS W151 |
NI Resist Ferralium Hastelloy C 316 SS Rubber W151 Polyurethane Neoprene Butyl Nitrile |
EN56C Ferralium Hastelloy C Titanium 316 SS 304 SS |
Ceramic Stellite Chrome Oxide Nordel Neoprene Viton |
Is
A professional manufacturing enterprise of slurry pumps and spare
Parts. Which own Mould Workshop, Casting Workshp, Machining Workshop and
Assembly Workshop.
Various requirement for materials in
the market, Naipu offering wet end part material as following. Metal
A05, A07, A12, A33, A49, A61 and etc. Rubber R08, R26, R33, R55, S01,
S21, S31, S42 and etc. Special materail: U01, EPDM, PU, CR, Hastelloy
276-C, Ferralium and etc.
