| After-sales Service Provided: | No overseas service provided |
|---|---|
| Power(W): | 0.11kw |
| Brand Name: | tianhuan |
| CNC or Not: | Normal |
| Condition: | New |
| Weight: | 1000KG |
| Dimension(L*W*H): | 1600X760X1900 |
| Place of Origin: | China (Mainland) |
| Production Capacity: | 30 |
Quick Details
Specifications

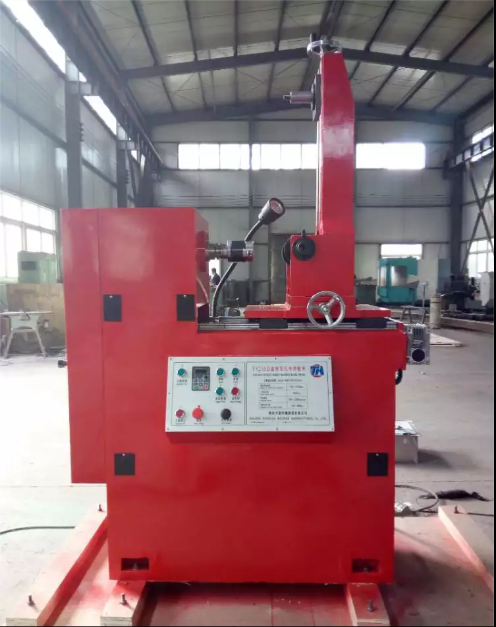

T8216 Con-rod bush boring machine
this boring machine is used to bore link bearing hole with diesel and gasoline engineering automobile tractor etc. (including copper quill and link tile). Customer carry also a little boring to link shaft seat. When filling special fixture on the boring machine, it can finish precision boring of some small parts with piston pin hole, gas pump bearing hole and valve seat hole etc.
Diameter range of boring hole |
15-150mm |
Centre distance of link two hole |
85-600mm |
Longitudinal travel of worktable |
320mm |
Spindle speed (6 steps) |
140-1200 rpm |
Transverse adjusting amount of fixture |
80mm |
Feeding speed of worktable |
0-320mm/min |
Traveling speed of working |
1800mm/min |
Diameter of boring bar |
Adjustable boring head,boring bar 8(boring from 8-280 |
Main motor power |
1.5kw |
Motor power of oil pump |
0.11kw |
Boring machine appearance size |
1600x760x1900mm |
Net weight |
1000kg |
