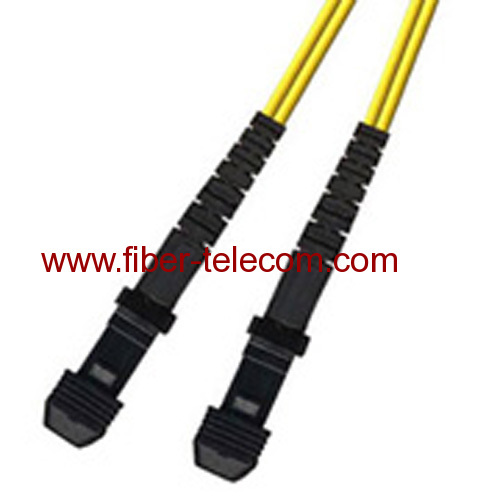

MTRJ-MTRJ Single mode Duplex Fiber Optic Patch Cord 2.0mm, 1~200 meters.

Part No.: CJJSSMDX2 + length

Description:

T&J fiber optic patch cords provide the highest level of connectivity for all your fiber interconnect applications.

Manufactored and tested to the tightest specifications. T&J patch cords meet Telcordia GR-326 requirements. Our precision zirconia ferrules and exvironmentally rugged connectors and cable assemblies ensure lasting, repeatable connections.

Applications:

Ethernet, Data Communication LAN and WAN.

? Fast? High-speed Enterprise Serves.

? Multiplexors, Switches, and Routers.

? Optical Access and ATM Networks Equipment.

? Optical Transport and Telecommunications Switching Equipment

Features:

? Excellent Return Loss.

? Ultra Low Insertion Loss.

? Singlemode.

? Simplex.

Performance Specifications:

? MT-RJ.

? PC or UPC.

? Telcordia GR-326 Compliant.

? Available in 3.0mm, 2.0mm, and 0.9mm

? Cable Jacket: PVC or LSZH

? Fiber: Tight-buffer or Easy-strip.

Technical Indication:

Type	Insertion Loss	Return Loss
Multi Mode (PC/UPC)	<=0.2dB	>=35dB
Single Mode (PC/UPC)	<=0.2dB	>=50dB
Single Mode (APC)	<=0.2dB	>=60dB

Ordering Information:

Connector   Types	Cable   Types
L = LC	C   = Patch Cord	2A1a   = Multi Mode Breakout Dia.7.0mm
F = FC	G   = Pigtail	2B13   = Single Mode Breakout Dia.7.0mm
S = SC	SM   = Single Mode 9/125um	AR   = G657A Armored Cable
T = ST	M5   = Multi Mode 50/125um	V   = PVC Jacket
M = MU	M6   = Multi Mode 62.5/125um	Z   = LSZH Jacket
J = MTRJ	M3   = Multi Mode OM3 50/125um	001   = 1 meter Length
E = E2000	SX   = Simplex	002   =  2 meters Length
D = DIN	DX   = Duplex	300   = 300 meters Length
P = PC	9   = 900um Dia.Meter	LB   = Loopback
U = UPC	2   = 2.0mm Dia.Meter	RF   = Ribbon Fan-out
A = APC	3   = 3.0mm Dia.Meter	BO   = Bunch-out

Packing: 1 piece / polybag.

Customer's brand or LOGO available to stick on the polybag.

or customed polybag available.

MTRJ-MTRJ Fiber Optic Patch Cord
