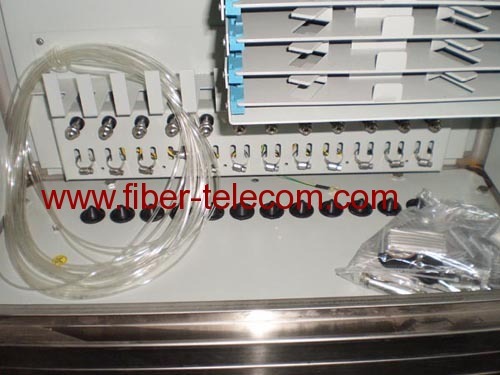

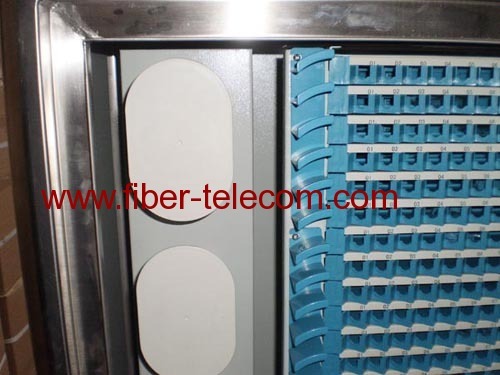

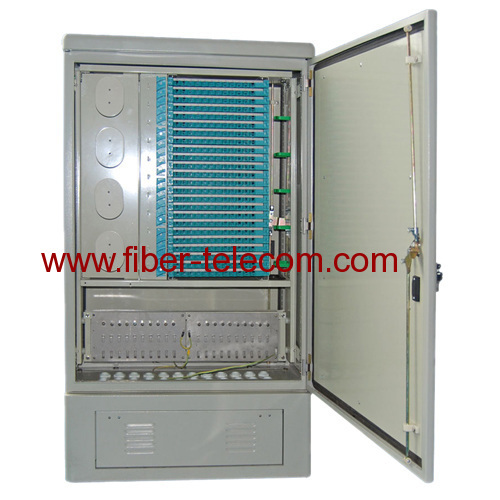

DF06A Fiber Optic Cross Connection Cabinet, make by Cold Rolled Steel, Max.Capacity 144-fibers

Features:

● the interface device used in connecting backbone cables and distributing cables.

● Realizing the obligation in node points, straight in, fiber distributing or adjusting between backbone cables and

● the body of the case is made of stainless steel, electrostatics plastic-spray surface, anti-corrosion.Suitable for

Ground or aerial installation.

● the area for fixing,splicing and wiring is classified clearly and easy for installation and checking the line.

Environment condition:

● Environmental temperature:-40℃～＋65℃

● Relative humidity:≤95% (When the temperature is +40℃)

● Atmospheric pressure:70～106Kpa

● Damp-proof, rain-proof, dust-proof, burglar-proof is standard by YD/T988-1998

Ordering information:

Item No.	Description				Size     (L x W x H) mm		Max.Capacity     (cores)
DC06A	Fiber optic cross connection cabinet				660 x 320 x 1150		144
DC06B	Fiber optic cross connection cabinet				660 x 320 x 1450		288
DC06C	Fiber optic cross connection cabinet				740 x 580 x 1450		576
DC06D	Fiber optic cross   connection cabinet, 2-door				900 x 640 x 1500		576
DC06F	Fiber optic cross   connection cabinet, 2-door				1270 x 660 x 1500		1152

Packing:1 set/wooden pack

Customer's brand or LOGO available to stick on the box.

or customed box available.
