| Type: | Heat Press Machine |
|---|---|
| Color & Page: | Two Colors |
| Usage: | hot stamping |
| Brand Name: | ST |
| Condition: | New |
| Type: | 1 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE Certificate |
| Voltage: | 4.5kw |
| Automatic Grade: | Automatic |
| Model Number: | ST055PE |
| Place of Origin: | China (Mainland) |
| Warranty: | 2 Years |
| Dimension(L*W*H): | 4100x2300x2100mm |
| Power(W): | 3.6kw |
Quick Details
Specifications

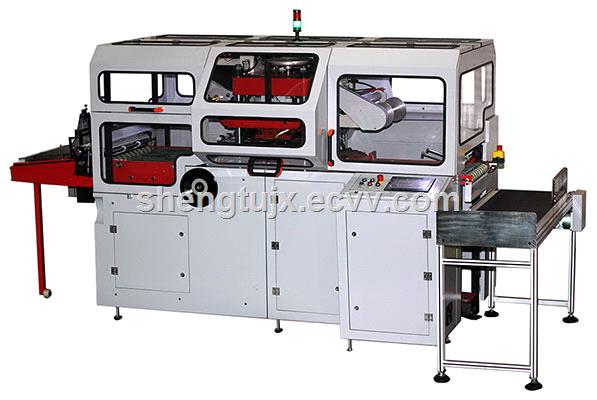

Specification1. Hot Stamping Machine is specialized in foil stamping hard covers, such as book cover,calendar, gift box, wine box, file, etc.
2.Speed:3000~3300pcs/h
3.Stamping size:420*355mm
1. Automatic cover leveling and stamping to be concave-convex, accurate position, fast speed.
2.Hard cover pressing can rotate at 90, stamping to be concave-convex for hardcover from different directions.
3.Paper delivery can rotate at 90, various stamping and save paper.
4.Stamping head can be adjusted up and down, stamping pressure adjustable, applicable for various thick stamping products.
5.Independent control device for hardcover pushing, simple structure, fast speed, stable functions.
6.Convenient for replacing the stamping mould.
7.Safety cover warning system.
Paramter of ST055PE
| Overall size | 4100x2300x2100mm |
| Weight | 3200kg |
| Speed | 10-60pcs/min |
| Max. Stamping pressure | 35T |
| Voltage | 380v |
| Max. Electric heating power | 3.6kw |
| Max. Working power | 4.5kw |
| Max. Case size | 660x405mm |
| Min. Case size | 170x100mm |
| Stamping size | 420x335mm |
