Pendulum Shearing Machineby Hydraulic Swing Shaft for Thin Thickness Plate

Machine Descriptions
   the shears blade movement is circular type, It is difficult that make the circular

 Blade. the material edge face is not very good, because it is the arc motion, which

 Can not be made into a rectangular blade, and should be done acute angle, so the

Force is not an ideal situation blades,blade injuries are more severe.but the Pendulum

Shearing machine's  prices were relatively cheap, if cut below 10mm Steel plate, you

Can consider using this machine.

Machine Features
     this Type machine use the main and auxiliary hydraulic cylinders drive the jog
 up and down,the knife may cut the steel plate.the overall Welding structure by
Vibration aging treatment, have high machine rigidity, high Precision and good precision
to maintain.the shearing machine have double-action function of upper slider and lower pad.
THe working stroke can be adjusted according to the technical requirements within
the Specified range.
   the up knife may stable rolling because of three-point supporting shaft close to
the rectangle track. the blade bearing may move easily. It is easy that adjusting the blade
Gap unIformity, improve the cutting edge quality and extend the life of the blade.
the hydraulic system uses two-Way plug-in integrated Valve.
 the feeding plate length can be displayed out by digital table. Photoelectric
Protection device can protect the machine and worker. All the function can be
Controled on the electric cabinet.

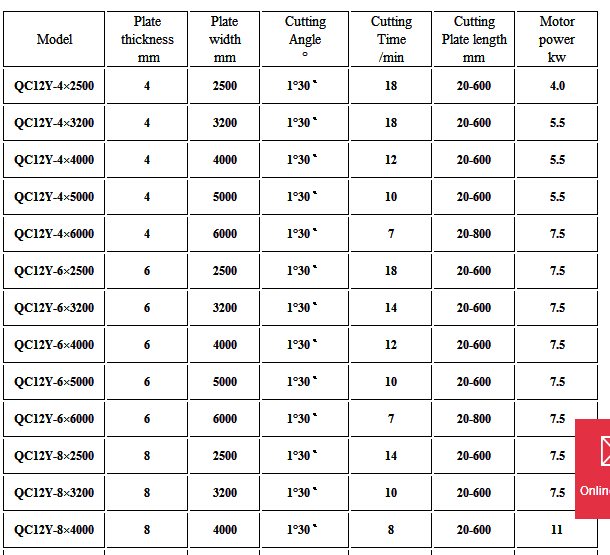

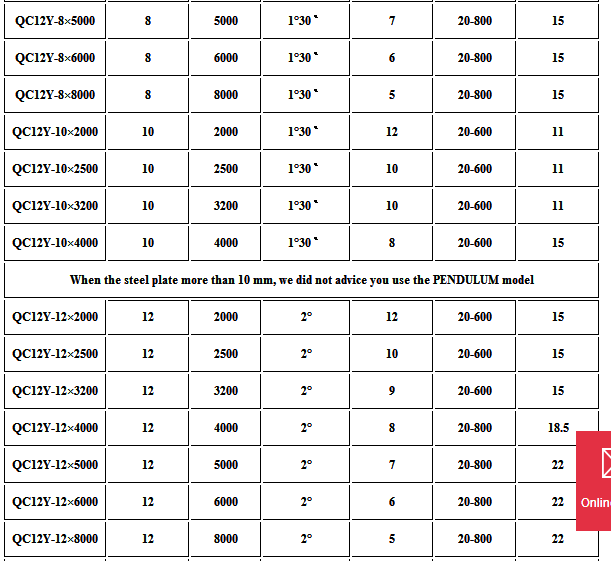

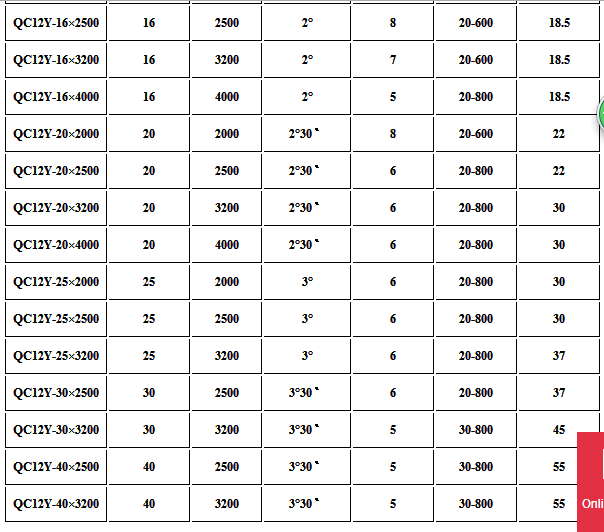

Main Technical Parameters

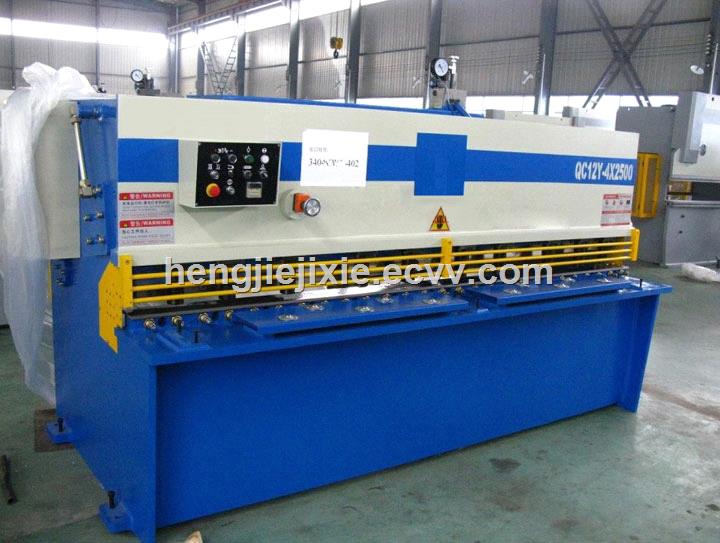

Machine Photos
