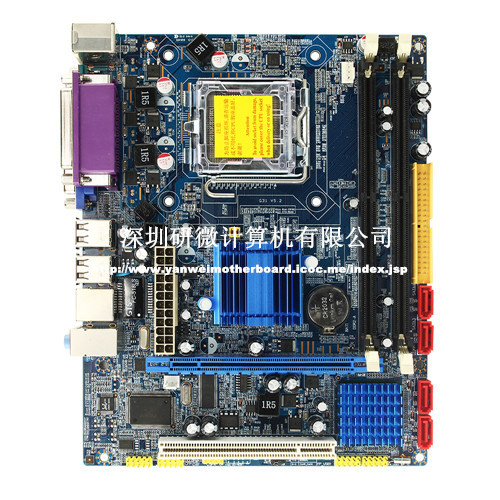

| G31 parameters |
|
|
| CPU |
Support FSB 533/800/1066
CPU |
| Support
Intel Pentium HT(Hyper Threading Technology)CPU |
| Support
Intel Conroe-L Socket775 CPU |
| Support
Intel Pentium 4 Socket775 CPU |
| Support
Intel Celeron D Socket775 CPU |
| Support
Intel Core 2 DUO Socket775 CPU |
| Chip
Set |
Intel G31 + ICH7 |
| Integrated
Graphics |
Intel Graphics Media Accelerator 3100 |
| Memory |
2 *240 pin DDRII slot, the
Memory can support up to 2GB |
| 2 *240
Pin DDRII slot, supports up to 2GB memory |
| Expansion slot |
1 PCI Express x 16 graphics
Slot |
| 1 x
PCI, compatible with pci2.2 |
| Integrated
Network card function |
the motherboard integrated
Rt8105e card |
| Sound
Card |
Onboard audio sound |
| IDE Ports |
1 X IDE channel can connect 2
IDE devices, support UDMA66/100/133 |
| SATA Ports |
4 X Serial ATA2 port (the
Maximum transmission rate of 300MB/s) |
|
|
1 X Serial Port, UART 16550
High speed mode |
| 1 x
Parallel port, support epp/ecp/spp transmission |
| 1 RJ45
X network cable interface |
| 8 X USB
Interface, compatible with USB 2 (of which 4 for the front) |
| 1 PS/2
Keyboard interface |
| 1 PS/2
Mouse interface |
| Main
Board size |
215MM X 170MM |
