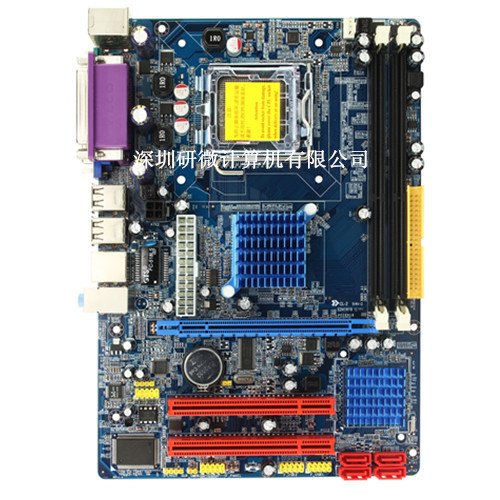

| G41 parameters |
| CPU |
Support FSB 800/1066/1333 CPU |
| Support Intel Pentium HT Hyper
Threading CPU |
| Support Intel CELERON D
Socket775 CPU |
| Support Intel Core 2 Duo Socket775 CPU |
| Support Intel Core 2 Quad Socket775 CPU |
| Chipset |
Intel G41 + ICH6 |
| Integrated graphics |
Intel Graphics Media
Accelerator X4500 integrated |
| Memory |
Support DDR3 1066/1333 dual channel memory, standard |
| 2* 240 pin DDR3 slot,
Supports up to 4GB memory; |
| Expansion slot |
1 a PCI Express x16 graphics slot |
| 2 a PCI, compatible with
PCI2.3 |
| Board
Network card |
Integrated RTL8103EL card |
| the
Onboard HA AUDIO sound |
Support 6 channel cinema sound output level |
| IDE port |
Provide a IDE interface |
| Support ultra ata66/100/133
Synchronous DMA mode |
| SATA port |
Provide 4 sets of support more than 1t hard disk SATA
Port |
| I/O PORTS |
1 x Serial Port, UART 16550 high speed mode |
| 1 X Parallel Port, support
EPP/ECP/SPP transmission |
| 1 RJ45 x network cable
Interface |
| 4 x USB interface,
Compatible with USB 2 |
| 1 ps/2
Keyboard interface |
| 1 PS/2 mouse nterface |
| Main
Board size |
241MM X 170MM |
