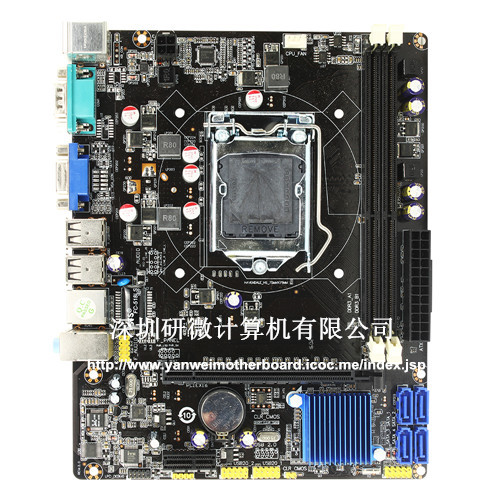

| H61 parameters |
|
|
| CPU |
|
|
|
| Intel socket 1155 supports the second
Generation Pentium g/core i3/i5/i7 processor |
|
|
|
|
| Chip set |
Intel
H61 |
| Integrated
Graphics |
Support
Multi-VGA output |
| Memory |
Support DDR3
800/1066/1333 dual channel memory standard |
| 2 *pin 240 DDR3 slots, one can support up to
4GB |
| Expansion
Slot |
1 PCI ExpressX16 graphics acceleration slot |
| 1 PCI Express x1 |
| Integrated
Network card function |
Integrated
10/100/1000M network card function |
| Sound card |
Onboard audio HD
Audio |
|
|
|
|
|
| SATA pors |
4
X SATA2 port (maximum transfer rate 300MB/s) |
| I/O
Ports |
|
| 1 X Serial Port, UART 16550 high speed mode |
| 1 RJ45 X network cable interface |
| 4 X USB 2 interface |
| 1 ps/2 X keyboard interface |
| 1 PS/2 X mouse interface |
| Main board size |
211MM X 168MM |
