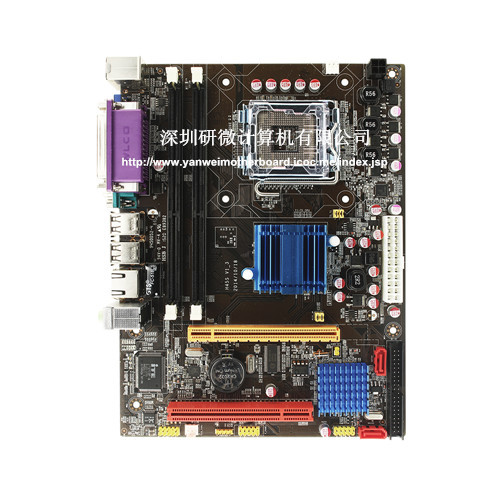

| GS45-775 parameters |
| 775CPU |
Support
FSB 800/1066/1333 CPU |
| Support
Intel Celeron M CPU |
| Support
Intel Core 2 Duo Socket775 CPU |
| Support
Intel Core 2 Quad Socket775 CPU |
| Chipset |
Intel GS45 + ICH9 |
| Integrated
Graphics |
Integrate Intel? Graphics Media
Accelerator X4500 |
| memory |
Support DDR3 1333/1066 dual channel memory, standard |
| 2 *240 pin DDR3 slot, one can
Support up to 4GB |
| Expansion
Slot |
1 PCI Express x16
Graphics slot |
| 1 PCI, compatible with PCI2.3 |
| Board network card |
Integrated RTL8105E card |
| the onboard HA AUDIO
Sound |
Support 6 channel cinema sound output level |
| IDE port |
Provide 1 IDE interface |
| Support
Ultra ata66/100/133 synchronous DMA mode |
| SATA port |
Provide 2 sets of support more
Than 1t hard disk SATA port |
| I/O
PORTS |
1 x serial port, UART 16550
High speed mode |
| 1 x
Parallel port, support epp/ecp/spp transmission |
| 1 RJ45
X interface card |
| 4 x
USB interface, compatible with USB 2.0 |
| 1 ps/2 keyboard interface |
| 1 ps/2 mouse interface |
| Main board size |
230MM X 173MM |
