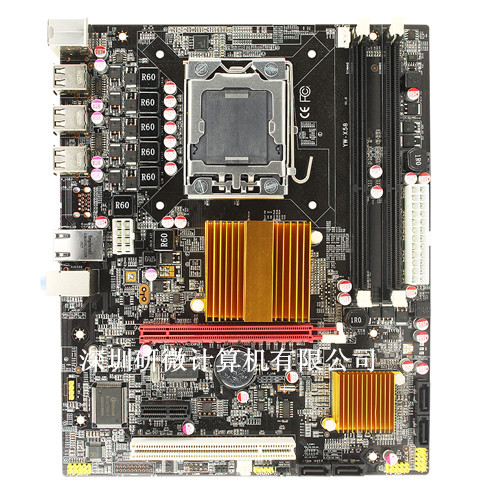

| X58 V1.0 parameters |
| CPU |
Support
LGA1366 slot using Xeon series processor |
| Chipset |
Intel
X58+ICH10 |
| Memory |
Support DDR3 standard
1066/1333/1600 dual channel memory |
| 2 *240 pin DDR3 slot, a single memory capacity 8GB |
| Expansion
Slot |
1 a PCI Express x16
Graphics slot |
| 1 PCI Express x2 |
|
|
1 PCI,Compatible PCI2.3 |
| Integrated network card function |
Integrated
10/100/1000M network card function |
| Sound card |
Onboard HD AUDIO
Sound support 6 channel sound output |
| SATA
Interface |
4 x Serial ATA2 port
(the maximum transmission rate of 300MB/s) |
| I/O
Interface |
1 RJ45 X network
Cable interface |
| 1 X Serial Port, UART 16550 high speed mode |
| 4 X USB3.0 interface (of which two are pre) |
| 8 X USB 2 interface (two of which are front) |
| 1 ps/2 keyboard interface |
| 1 PS/2 mouse interface |
| Board size |
240mm X 195mm |
