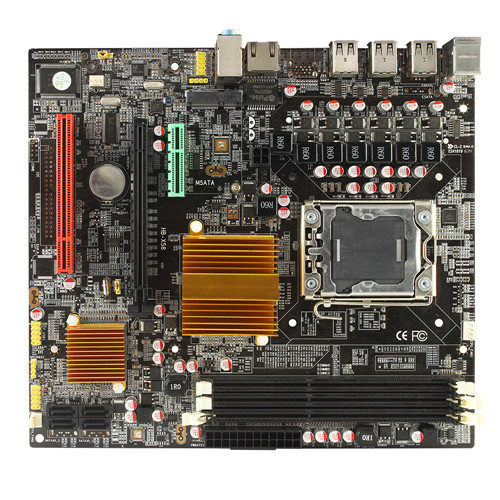

| X58 V2.0 |
| CPU |
Support
LGA1366 slot using XEON series processor |
| Chipset |
Intel
X58+ICH10 |
| Memory |
Support
DDR3 standard 1066/1333/1600 dual channel memory |
| 3 *240 pin DDR3 slot, a single memory capacity
8GB |
| Expansion
Slot |
1 PCI Express x16 graphics slot |
| 1 PCI Express x4 |
|
|
1
PCI, compatible with PCI2.3 |
| Integrated network card function |
Integrated
10/100/1000M network card function |
| Sound
Card |
Onboard
HD AUDIO sound support 6 channel sound output |
|
|
|
|
|
| SATA
Interface |
4
X serial ATA2 port (the maximum transmission rate of 300mb/s) |
| I/O
Interface |
1
RJ45 x network cable interface |
| 1 X Serial Port, UART 16550 high speed
Mode |
| 1 x eSATA (external SATA interface) |
| 8 x USB 2 interface (of which 2 for the
Front) |
| 1 ps/2 keyboard interface |
| 1 ps/2 mouse interface |
| Board size |
244Mm X 220mm |
|
|
|
