After-sales Service Provided:	Engineers available to service machinery overseas
Certification:	ISO 9001:2000
Model Number:	W11Y
Brand Name:	HENGJIE
Place of Origin:	China (Mainland)
Condition:	New

Hydraulic Adjust up Roller Symmetrical 3-roller Rolling Machine

Machine Descriptions:

this model machine is a hydraulic symmetrical rolling machine, Upper roller is

Symmetrical located at the center of 2 lower rollers.

Upper roller can be vertical adjusted up and dowm . Vertical moving and head

Overturning is controled by Hydraulic cylinder type.

Two down rollers are power rollers .the motor and high accuracy gear reducer

Drive two rollers synchronous Rolling.Two lower rollers were fixed and its distance

Can not be adjusted.

Low investment, simple operation, widely applicable to a variety of working

Environment and convenient maintenance.

this type machine have a shrtcoming: the plate edge can not be rolled,we must

Prebend by another machine.

Main Technical Parameters:

Type	Max Plate Thickness mm	Max Plate width mm	Yield Limit of plate MPa	Rolling speed M/min	Min rolling Diameter mm	Upper roller diameter mm	Bottom roller diameter mm	Center distance between 2 bottom rollers mm	Main Power kw	Hydraulic Power kw
W11Y- 30X2000	30	2000	245	4	1200	360	290	480	22	7.5
W11Y-25×2500	25	2500	245	4	1200	370	300	480	22	7.5
W11Y-30×2500	30	2500	245	4	1200	420	360	550	30	11
W11Y-25×3000	25	3000	245	4	1200	430	370	550	30	11
W11Y-30×3000	30	3000	245	4	1200	450	390	600	30	11
W11Y-40×2500	40	2500	245	3.5	1400	500	400	600	37	15
W11Y-40×3000	40	3000	245	3.5	1600	540	440	600	45	18.5
W11Y-50×3000	50	3000	245	3.5	2000	580	480	750	55	22
W11Y-60×3000	60	3000	245	3.5	2400	660	560	800	75	30
W11Y-70×3000	70	3000	245	3.5	2800	710	620	850	90	37
W11Y-80×3000	80	3000	245	3.5	3200	770	680	900	90	37
W11Y-90×3000	90	3000	245	3.5	3600	820	730	950	110	45
W11Y-100×3000	100	3000	245	3.5	4000	860	770	1000	110	45
W11Y-110×3000	110	3000	245	3.5	4400	900	810	1080	132	55
W11Y-120×3000	120	3000	245	3.5	4800	950	860	1160	132	55

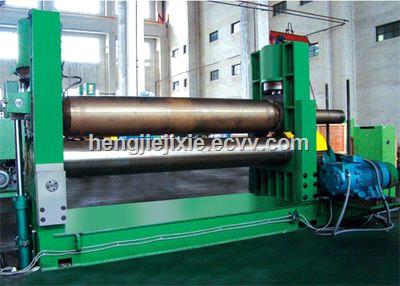

Machine Photos
