| Voltage: | 220V/110V, single phase, 50Hz |
|---|---|
| Brand Name: | TioTech |
| Place of Origin: | China (Mainland) |
| Cutting modes: | Plasma or flame |
| Effective cutting length: | Max 12000mm |
| Cutting material: | Carbon steel, stainless steel, copper alloy, nickel alloy, titanium alloy, etc. |
| Plasma cutter (optional): | Hypertherm, Victor, Kjellberg, TopTechJCH series plasma cutter |
Quick Details
Specifications
PIPE I

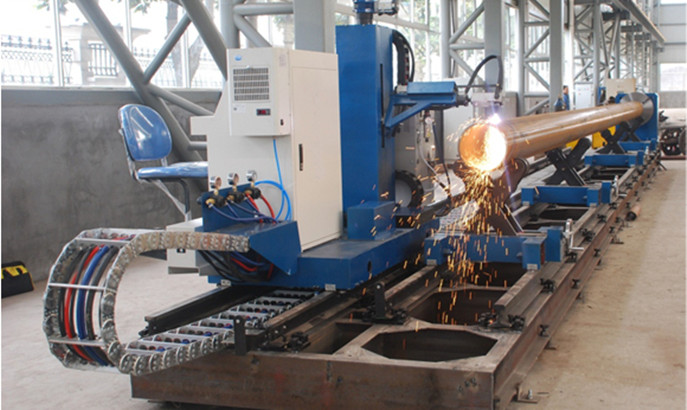

Pipe I is a cantilever type pipe cutting machine.
Z axis goes up & down.
Torch works along with Y axis. Slide moves along with X axis guide rail.
the cutting pipe is fixed on the 3 chuck jaws of the base manually or by electric.
4 groups movable supports can keep the balance of the cutting pipe.
Each movable support can move along with X axis rail.
so that can realize different length pipes supports.
Main technical parameters of Pipe I
Pipe I is a cantilever type pipe cutting machine.
Z axis goes up & down.
Torch works along with Y axis. Slide moves along with X axis guide rail.
the cutting pipe is fixed on the 3 chuck jaws of the base manually or by electric.
4 groups movable supports can keep the balance of the cutting pipe.
Each movable support can move along with X axis rail.
so that can realize different length pipes supports.
Main technical parameters of Pipe I
| Type | Pipe I |
| Input voltage | 220V/110V, single phase, 50Hz |
| Cutting modes | Plasma or flame |
| Cutting thickness | Plasma: depend on plasma cutters |
| Flame: 5-50mm | |
| Cutting pipe size | External diameter:Φ48-800mm |
| Inner diameter:≤Φ240mm | |
| Effective cutting length | Max 12000mm |
| Length position accuracy | ±0.3/2000mm |
| Oblique crossing angle | 10°- 170° |
| Accuracy | ±0.2°/360° |
| Beveling angle | -60° to +60°(flame) |
| Max rotation angle | W axis: unlimited rotation |
| A axis: ±60°(torch swing angle along with X axis) | |
| B axis: ±65°(torch swing angle along with Y axis) | |
| Cutting speed | 0-6000mm/min |
| Cutting material | Carbon steel, stainless steel, copper alloy, nickel alloy,
Titanium alloy, etc. |
| Plasma cutter (optional) | Hypertherm, Victor, Kjellberg, TopTechJCH series plasma cutter |
Company Introduction
Beijing TopTech Technology Co., Ltd. Was Founded in Beijing, the capital and main transportation city in China.
with more than 10 years experience in Welding and cutting industry, we had R&D our advanced welding and cutting Equipment.
Mature teams, included sales team, Marketing team, production team and after-service team, supply professional Service for customers.
Strictly follow ISO 9001:2000 world quality Management system.
Beijing TopTech Technology Co., Ltd. Products include plasma cutting machine, laser cutting machine, CNC cutting Machine, flame cutting machine, portable cutting machine, gantry cutting Machine, laser carving machine, high definition plasmaCutting machine, bevel Cutting machine,Plasma cutter.
