the following example is for you reference.


1.Brief Introduction:

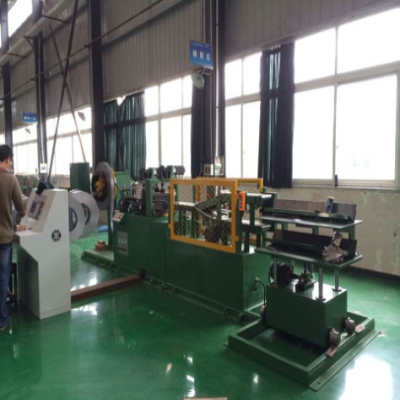

the New structure adopt swing cutting techniques, the least shearing width and length is 30MM and 100 MM,which can sheer side sheet, York sheet, centre sheet,45 parallelogram and 90 right-angle sheets.Particularly suitable for

the small iron-core sheeting

2.Techincal parameters:

Range of work

  Thickness:0.23-0.35mm

  Width:    30-150mm

  Length:   100-1200mm (the shortest length according to the sheet shape)

  Sheet shape:side sheets York sheets and centre sheets

Require for coil

  Width tolerance      ±0.1mm

  Burr                 ≤0.03mm

  S deviation           Within 2000mm, One-way≤0.2mm

Precision

  Length tolerance:  ±0.2mm/2m

  Angle  tolerance:  ±0.025°

  Burr:   ≤0.02mm

Feeding speed:0-180m/min

Total installed capacity:about 6Kw

Total gas consumption:0.1m3/min

Working conditions:

(1)Temperature less than 40℃ (2)Voltage fluctuation 380V±10％ (3)Frequency50Hz

3.Performance features:
