| Size: | Customized |
|---|---|
| Finishing: | Per customer required |
| Blade Material: | HSS |
| Model Number: | RKE-001 |
| Brand Name: | Renke |
| Place of Origin: | China (Mainland) |
| Optional Size: | Customized, OEM |
| Optional Material: | D2,M2,SKD,H13,9crsi,Cr12MOV,W6mo5cr4V2 |
| Use: | Steel Plant |
| Process: | Forming |
Quick Details
Specifications

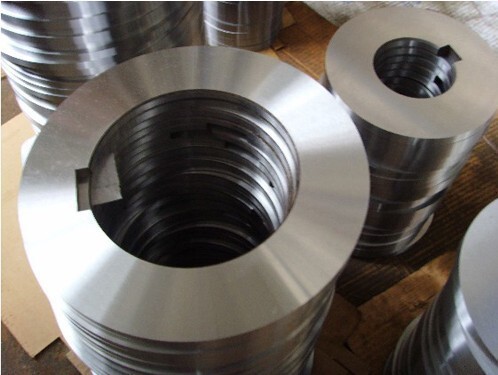

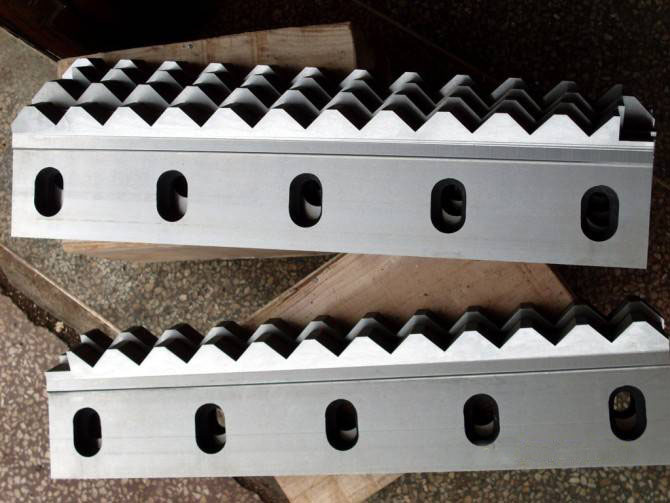

Metallurgy Machine Blade
Cold shear blade
this kind of Pipe Cutting Machine Blade is mainly used in the pipe production line system, and it moves in synchronization with pipes including paper tubes,brass,aluminum tubes, steel pipes etc.It slowly cuts into the center when rotates along the peripheral of tubes, then cuts off the tubes.
Hot shear blade
in hot-rolling, we use high-quality steel materials for the cutting tool, such as transverse cutting tool produced by nickel-alloy steel(preferable heat resistance),which can be used to cut:
Hot-rolling thick billet, thick steel plate, steel ingot, steel bar etc.
Materials: 9CrSi,Cr12MoV,W6Mo5Cr4V2,W18Cr4V etc.
Cold shear blade
this kind of Pipe Cutting Machine Blade is mainly used in the pipe production line system, and it moves in synchronization with pipes including paper tubes,brass,aluminum tubes, steel pipes etc.It slowly cuts into the center when rotates along the peripheral of tubes, then cuts off the tubes.
Hot shear blade
in hot-rolling, we use high-quality steel materials for the cutting tool, such as transverse cutting tool produced by nickel-alloy steel(preferable heat resistance),which can be used to cut:
Hot-rolling thick billet, thick steel plate, steel ingot, steel bar etc.
Materials: 9CrSi,Cr12MoV,W6Mo5Cr4V2,W18Cr4V etc.
| List of Material | ||||
| GB | DIN | JIS | ASTM | ISO |
| 9CrSi | 90CrSi5 | - | - | - |
| 6CrW2Si | 60WCrV7 | - | - | 60WCrV2 |
| 7Cr7Mo2V2Si | - | - | - | - |
| Cr12MoV | X165CrMoV12 | SKD11 | - | - |
| Cr12Mo1V1 | X155CrVMo12-1 | - | D2 | 160CrMoV12 |
| W18Cr4V | S18-0-1 | SKH2 | T1 | HS18-0-1 |
| W6Mo5Cr4V2 | S6-5-2 | SKH51 | M2 | HS6-5-2 |
| 4Cr5MoSiV1 | X40CrMOV5-1 | SKD61 | H13 | 40CrMoV5 |
| T8 | C80W2 | SK6 | W1A-8 | TC80 |
| 42CrMo | 42CrMo4 | SCM440 | 4140 | 42CrMo4 |
