| Efficiency: | IE 1 |
|---|---|
| Place of Origin: | China (Mainland) |
| AC Voltage: | 208-230 / 240 V |
| Phase: | Single-phase |
| Output Power: | 0.5HP(0.37KW)~10HP(7.5KW) |
| Frequency: | 50Hz(60Hz is available on request) |
| Type: | Induction Motor |
Quick Details
Specifications
the mouting dimension is fully conformed to IEC standard.the efficiency meets EFF2 standards.
YC series motors are suitable for powering small type drilling machines and water pumps, especially for famil workshops where only single-phase current supply is available.
Operating conditions

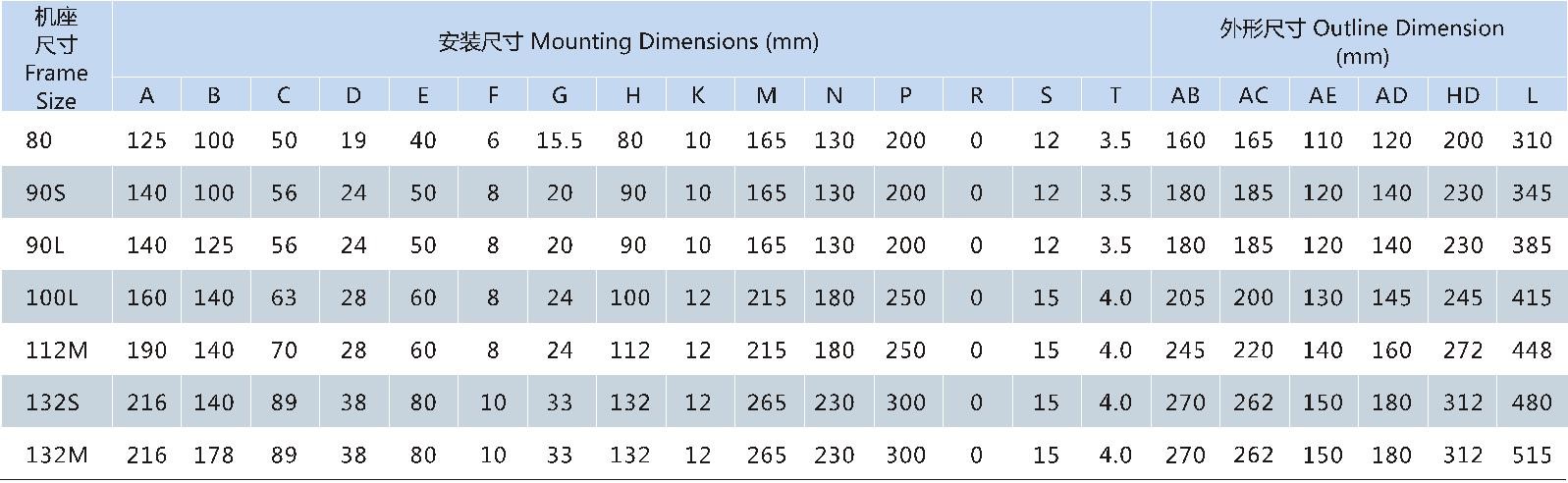

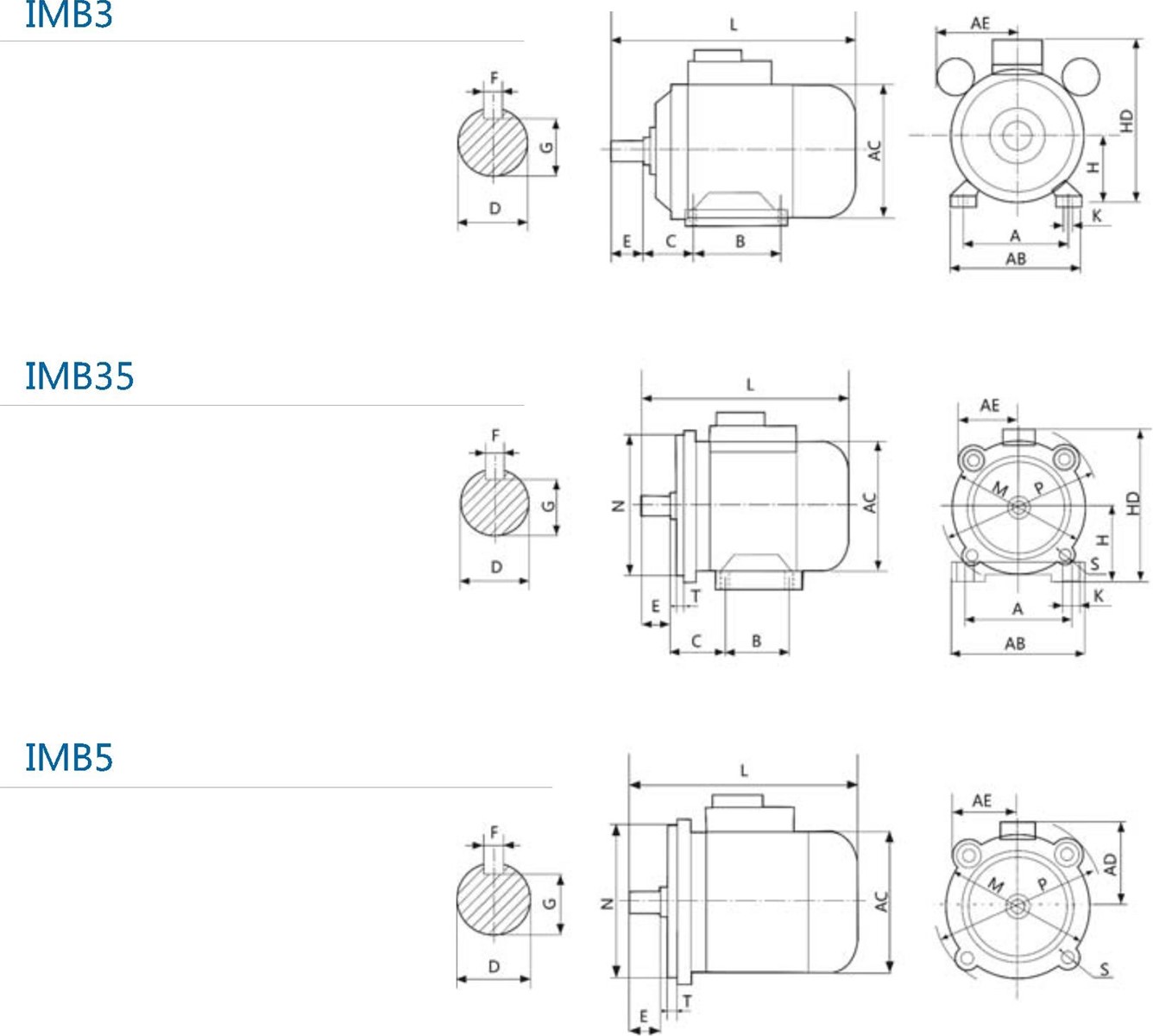

Outline and Installation Dimensions

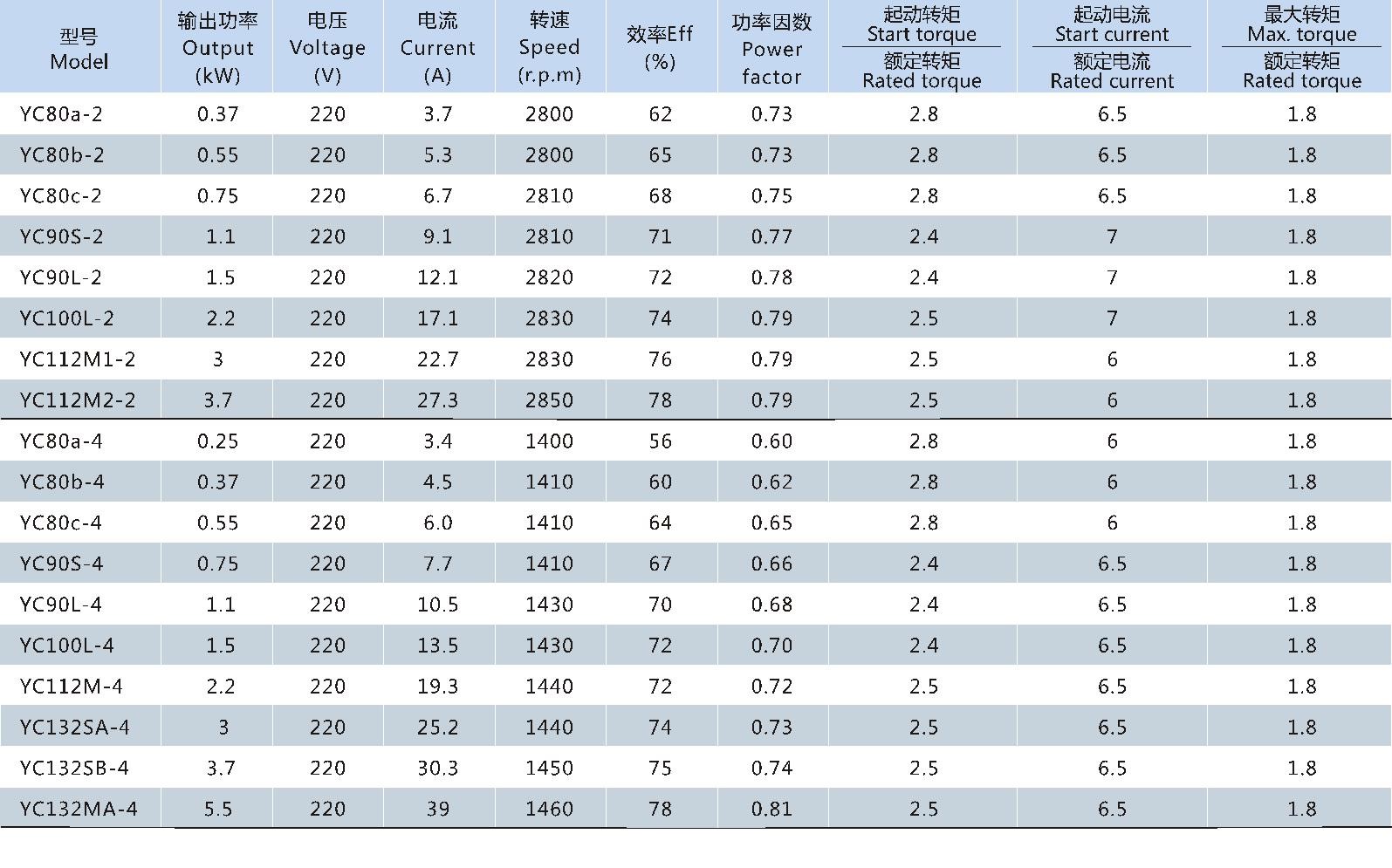

YC series motor technical data
Quality, reasonable price and good service, welcome consulting, ordering!
YC series motors are suitable for powering small type drilling machines and water pumps, especially for famil workshops where only single-phase current supply is available.
Operating conditions
Ambient temperature: |
-15℃≤ θ ≤40 ℃ |
Altitude: |
Not exceeding 1000meters |
Rated voltage: |
220V ± 5% |
Rated frequency: |
50Hz ( 60Hz is available on request ) |
Duty/Rating: |
Continuous(S1) |
Insulation class: |
Class B |
Protection class: |
IP44 |
Cooling method: |
IC 0141 |
Outline and Installation Dimensions
YC series motor technical data
