| Model Number: | BGZL40B2 |
|---|---|
| Brand Name: | Henglian |
| Place of Origin: | China (Mainland) |
| Application: | Construction |
| Color: | Silver |
| Weight: | 535kg |
Quick Details
Specifications
the technical parameter for BGZL-40 steel bar rib peeling and threading machine

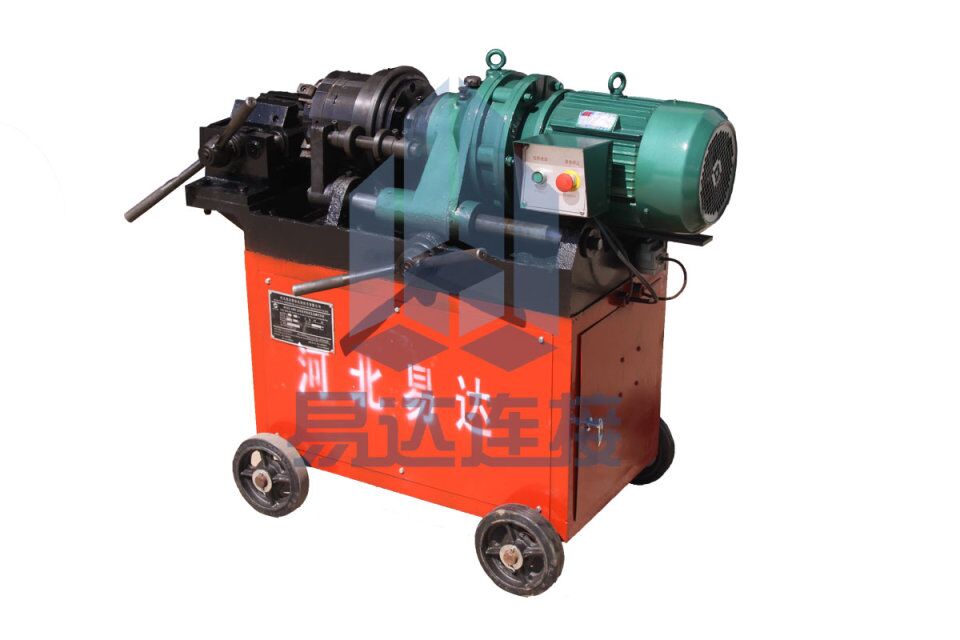

BGZL-40B2 steel bar straight screw thread processing rib peeling machine is the exclusive use rib peeling knurling machine for the straight screw thread connecting. It is mainly used in the processing of the top of the structural steel bar.
| the Machine Model | BGZL-40B2 Machine | |||
| Rolling Roller model | E | F | G | H |
| Thread Pitch (mm) | 2.0 | 2.5 | 3.0 | 3.0 |
| Steel Bar Standard | 16 | 18,20,22,25 | 28,32 | 36,40 |
| the Whole Machine Weight | 535Kg | |||
| the Power of Main Electric Motor | 5.5KW | |||
| the Power of Water Pump Electric Motor | 0.75KW | |||
| the Work Voltage | 380V 50Hz 3Phase | |||
| the Output Rotate Speed of Reducer | 62 | |||
| Dimension(mm) | 1000*180*1000mm | |||
