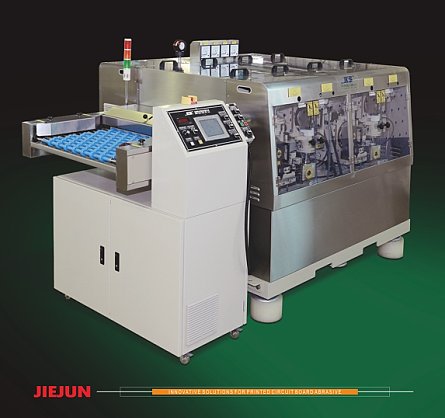

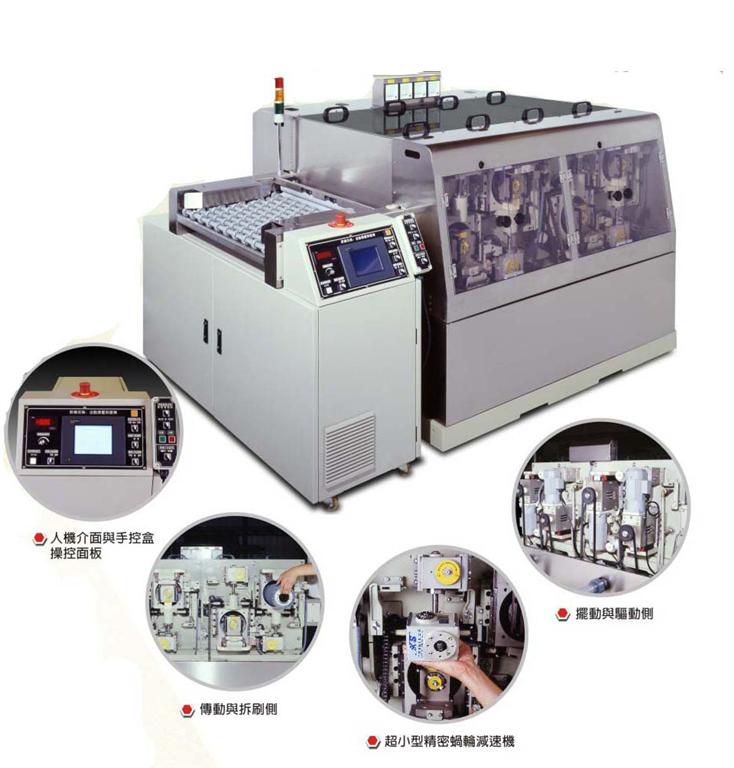

4 heads brushing machine

Usage:
It is used widely for PCB(plate) surface treatment after Cu plating, Via filling Cu plating, Resin removal, Hole plugging. It is necessary for HDI (PCB)manufacturing processing.

Features:

It can brush the thick of 0.2-3.2mm or0.1-2.0mm or1-10mm PCB.

It has four brush Axis, two abrove and two below. Which can assemble all kinds of brushes (nylon brush, non-woven brush and ceramic brush).

the machine can detect the PCB's thickness automatically,so it can operation automatically.

It can set a certain pressure data.

It can brush both sides of the PCB at the same time.

Performance excellent surface quality for various PCB surface uniformity.

It has brush dressing function using both sigle side and two sides diamond dressing board.
