Features:

1. Self tapping

2. no pre-tapping required

3. Very high pull-out resistance

4. Highly resistant to vibration, can withstand vibration without loosening

5.Produces high quality, permanent,wear-resistant threads

6. Unlimited thread re-usability

7. Protects expensive components from damage

8. Easy to install, standard taps can be used

9. Wide variety of styles to fit almost every application

307 SELF TAPPING INSERTS
307 Self-tapping Wlth cutting bores	Length (mm)	External Thread	the reference hole diamter		Minimum Borehole depth (mm)
			Aluminium Alloy	Cast iron Products
M3-0.5	4	M5-0.6	4.6-4.7	4.7-4.8	8
M4-0.7	6	M6.5-0.8	6.0-6.1	6.1-6.2	10
M5-0.8	7	M8-1.0	7.4-7.5	7.6-7.7	13
M6-1.0	8	M10-1.25	9.3-9.4	9.5-9.6	15
M8-1.25	9	M12-1.5	11.1-11.3	11.3-11.5	18
M10-1.5	10	M14-1.5	13.1-13.3	13.3-13.5	22
M12-1.75	12	M16-1.75	15.0-15.3	15.3-15.5	26
M14-2.0	14	M18-2.0	17.0-17.2	17.3-17.5	28
M16-2.0	14	M20-2.0	19.0-19.2	19.3-19.5	27

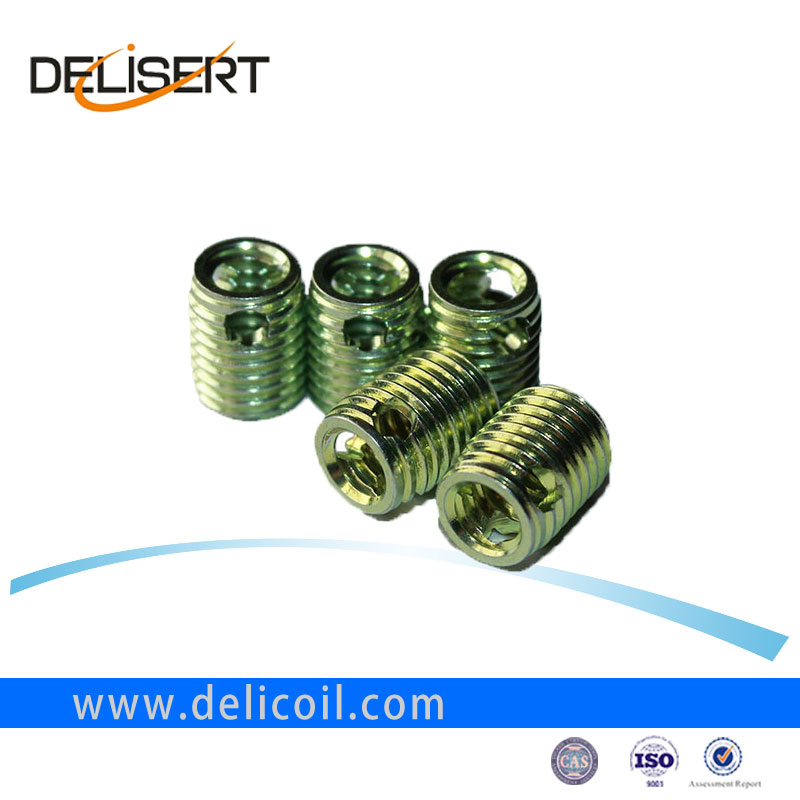

308 SELF TAPPING INSERTS
308 Self-tapping Wlth cutting bores	Length (mm)	External Thread	the reference hole diamter		Minimum Borehole depth (mm)
			Aluminium Alloy	Cast iron Products
M3-0.5	6	M5-0.6	4.6-4.7	4.7-4.8	8
M4-0.7	8	M6.5-0.8	6.0-6.1	6.1-6.2	10
M5-0.8	10	M8-1.0	7.4-7.5	7.6-7.7	13
M6-1.0	12	M10-1.25	9.3-9.4	9.5-9.6	15
M8-1.25	14	M12-1.5	11.1-11.3	11.3-11.5	18
M10-1.5	18	M14-1.5	13.1-13.3	13.3-13.5	22
M12-1.75	22	M16-1.75	15.0-15.3	15.3-15.5	26
M14-2.0	24	M18-2.0	17.0-17.2	17.3-17.5	28
M16-2.0	24	M20-2.0	19.0-19.2	19.3-19.5	27



Installation process:

 Drilling→TApping→INstalling→Breaking off tang

Tools:

 1.Drill: used for drilling the base holes

 2. taps: used for the processing special internal thread of the base holes.

 3.Installation tools: put sets into the threaded hole.

 4.Break-off tools: break off the tang of thread insert.

 5.Extraction tools: used for removing the damaged thread insert from the threaded hole.
