1.300-2000kg/h PET washing line for bottles flakes
Product name contains the specifications, size, material, as far as possible parameter, model, USES the content such as;
2.Product general information
Place of Origin: |
China |
Brand Name: |
Flydragon |
Model Number: |
300kg/h,500kg/h,1000kg/h,2000kg/h |
Certification: |
CE,SGS |
3.Product commerce clause
Minimum Order Quantity: |
1 set |
Price: |
30000-100000 USD/set |
Packaging Details: |
Wood pallet covered by plastic film |
Delivery Time: |
70 days |
Payment Terms: |
L/C,T/T |
Supply Ability: |
35 sets/month |
4.Product introduction
Quick Detail:
PET washing line
Surface moisture: max. 1%.
PVC content: max. 500 ppm.
Glue content: max. 4.000 ppm.
Applications:
PET washing line is mainly used for removal of label,bottle cap,sediment,oil,liquid residue and other dirties.
Description:
PET washing line is composed of garbage separation (automatic & manual), bottle & flake crushing, cold & hot washing & cleaning, flake dewatering & drying, dust & label removal, packing, etc.
the line is composed of bale breaker,trommel separator,crusher,floating washer,hot washer,high speed friction washer,dewatering machine,dryer,label separator etc.
Raw material:packaged PET bottles,PET bottles,PET flakes.
Final product:
- Surface moisture: max. 2%
- PVC content: max. 500 ppm(According to your worker sorting)
- Glue content: max. 4.000 ppm (Flakes included)
- Label content: max. 500 ppm(According to your worker sorting)
- HDPE / PP content: max. 500 ppm
- PET dust: max. 0.1 %
- Metal content: max. 50 ppm
Specifications:
Capacity |
300kg/h |
500kg/h |
1000kg/h |
2000kg/h |
Item |
Qty:(Set) |
Qty:(Set) |
Qty:(Set) |
Qty:(Set) |
Bale breaker |
― |
― |
1 |
1 |
Belt conveyor |
― |
― |
1 |
1 |
Trommel separator |
― |
― |
― |
1 |
Belt conveyor |
― |
― |
― |
1 |
Label remover |
― |
― |
1 |
1 |
Manual sorting table |
― |
― |
1 |
1 |
Belt conveyor |
1 |
1 |
1 |
2 |
Wet Crusher |
1 |
1 |
1 |
2 |
Screw feeder |
1 |
1 |
1 |
1 |
Hot washer |
― |
1 |
1 |
1 |
Screw feeder |
― |
1 |
1 |
1 |
Hot washer |
― |
― |
1 |
1 |
Screw feeder |
― |
― |
1 |
1 |
High speed |
1 |
1 |
1 |
1 |
Floating washer |
2 |
2 |
2 |
3 |
Dewatering machine |
1 |
1 |
1 |
1 |
Pipeline dryer |
― |
― |
1 |
1 |
Label separator |
― |
― |
― |
1 |
Storage hopper |
1 |
1 |
1 |
1 |
Competitive Advantage:
1. High automation level, try best to reduce your cost on labor and ensure high processing capacity.
2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 or 316 stainless steel; Ensure no second pollution to flakes.
4. Ideal impurity removal effect.
5.Siemens contactor,RKC temperature controller
Polestar Machinery a professional factory for manufacturing series waste plastic recycling equipment (PET bottle recycling; PE/PP film,bags recycling, HDPE bottle /PP barrel recycling, and PP PE film pelletizing,PP PE flakes pelletizing,PP/PE/PVC corrugated pipe extruder etc).
If you want more details of our PET bottle washing machine/waste plastic recycling machine/ plastic pelletizing line, please do not hesitate to let me know!.Welcome to our factory!

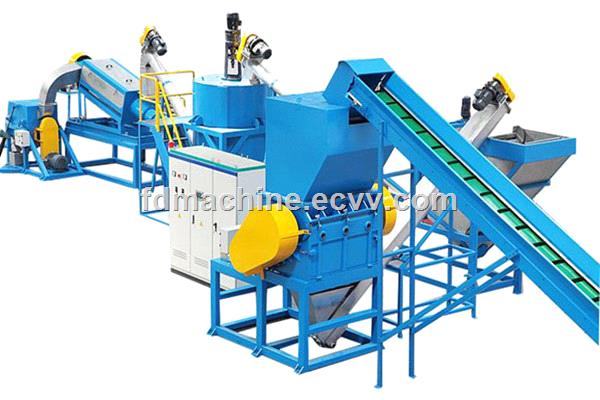

PET washing line:
