| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Weight: | 5000kg |
| Dimension(L*W*H): | 2400*2400*2500mm |
| Power(W): | 9kw |
| Model Number: | WT-300 |
| Brand Name: | Dongji |
| Place of Origin: | China (Mainland) |
| Max. Grinding Length: | 360mm |
| Max. Grinding Diameter: | 255mm |
| CNC or Not: | CNC |
| Type: | Universal |
| Condition: | New |
| X Y Z Working Stroke: | 400*300*300mm |
| X Y Z Positioning Accuracy: | + - 0.006mm |
| X Y Z Repeat Ability: | + - 0.005mm |
| X Y Z Maximum Feed Rate: | 6m/min |
| Rotation Angle of A-axis: | 360 |
| Rotation Angle of C-axis: | 270 |
| Table Size: | 400*300mm |
| Power of Spindle: | 9kw |
| Power of X, Y, Z, C Axis: | 1.3kw |
Quick Details
Specifications

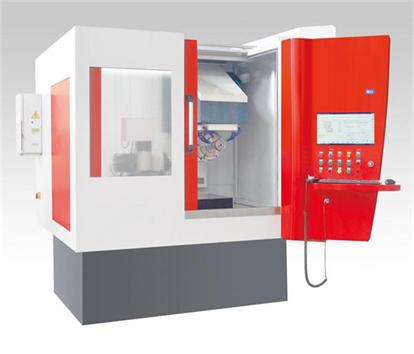

CNC 5-Axis Tool Grinder WT-300
1.Brief Introduction:
1. Reasonable structure, reliable, strong rigidity, high precision.
2. High performance at grinding materials like PCD, carbide, cemented carbide, tungsten steel, HSS, etc..
3. Selection of foreign high-end systems and software.
4. Widely used in designing, grinding, resharpening cutting tools: ball cutters, milling cutters, reamers, drills, department of orthopedics, medical equipment parts, precision gears and all kinds of precision machinery parts and components.
2.Techincal parameters: Product Parameter Working Stroke(X,Y,Z) 400×300×300mm Positioning Accuracy(X,Y,Z) ±0.006mm Repeat Ability(X,Y,Z) ±0.005mm Maximum Feed Rate(X/Y/Z) 6m/min Rotation Angle of A-axis 360° Rotation Angle of C-axis 270° Table Size 400×300mm Power of Spindle 9kw Power of X, Y, Z, CAxis 1.3kw Machine Body Weight ≈5000kg External Dimension of Machine about 2400×2400×2500mm
Main Configuration Control System: SWITZERLAND NUM 5-AXIS CNC SYSTEM Servo Motor: JAPAN YASKAWA Screw Rod: JAPAN THK/ TAIWAN TBI Actuator: JAPAN YASKAWA Slide way: JAPAN THK High-speed Spindle:9kw
3.Performance features:
1. with one-time setup, CNC 5-axis tool grinder is widely used in grinding standard cutting tools just like drill bits, milling cutter, thread taps, ball-end mills, bull-nose mills, formed cutters, orthopedic instruments, precision gears and machinery parts and components.
2. Equipped with well designed software, the machine offers complete grinding solutions for simple, complicated or non-standard tools which make grinding work more advanced and easier.
3. Applied with 3D simulation grinding software, tools' grinding and manufacturing can be achieved greater precisely.
4. Memory storage function can show precision data on the digital display unit when you want to set new tool data which save a lot of time for the user.
5. Options for speed reduction: worm gearing on spindle axis and work piece axis or DD motor on spindle axis and work piece axis.
4.Our service:
1.One-year quality warranty for the whole machine.
2.24-hours technical support by e-mail.
3.User-friendly English software, user manual and related videos.
4.All spare parts for the machine provided.
5.Face-to-face training or installation to the customer's factory by our professional service team.

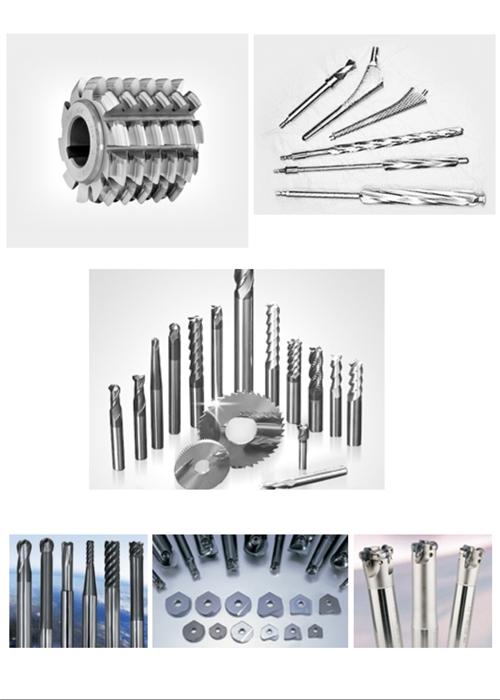

5.Product effects
